Tools of Mass Gunpla Building!

DSC_0032

Hi! Last time I edited this page was last March 2012, it’s high time I update my tools section since my I use more tools now than before.

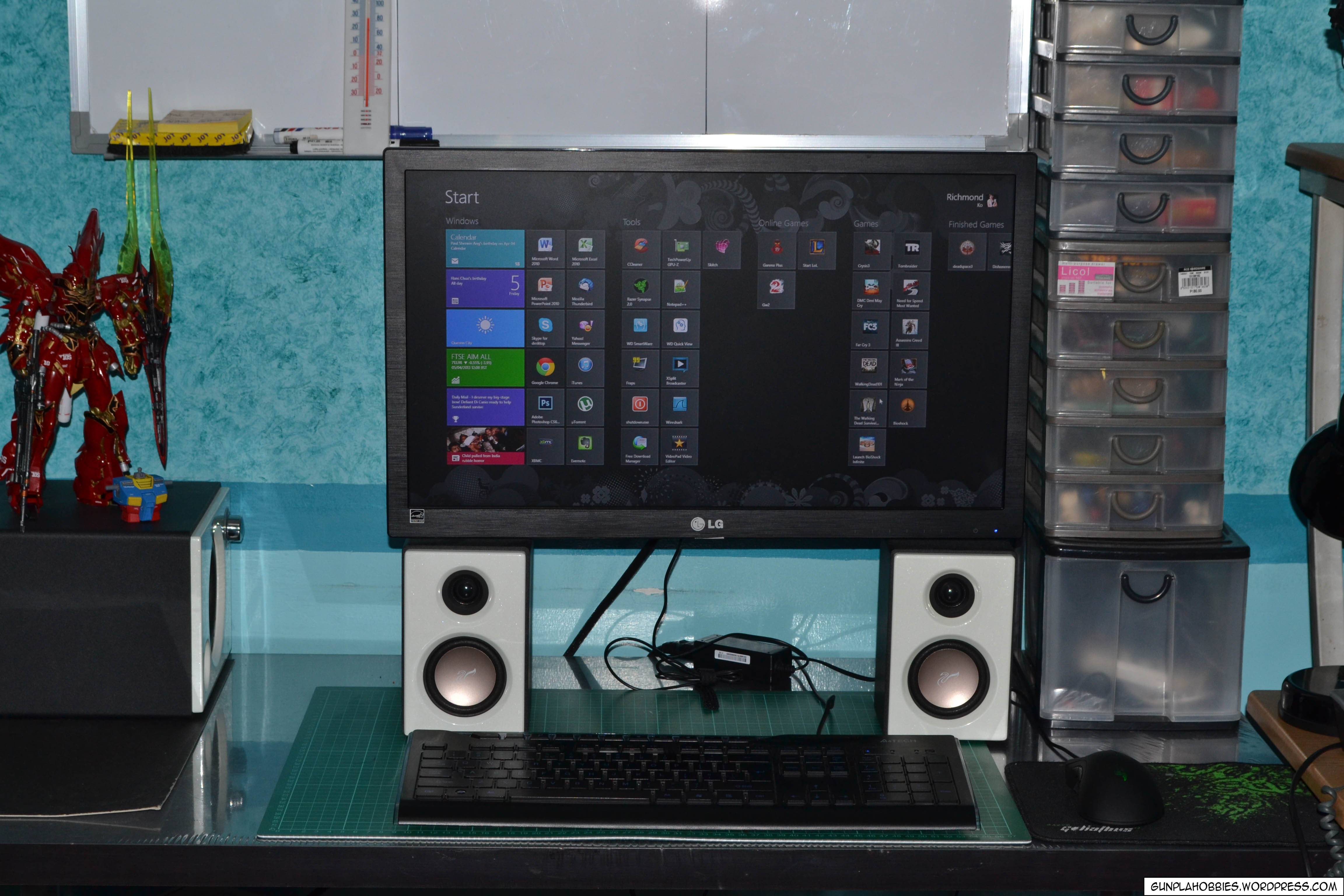

First let me show you my work space:

DSC_0028

DSC_0029

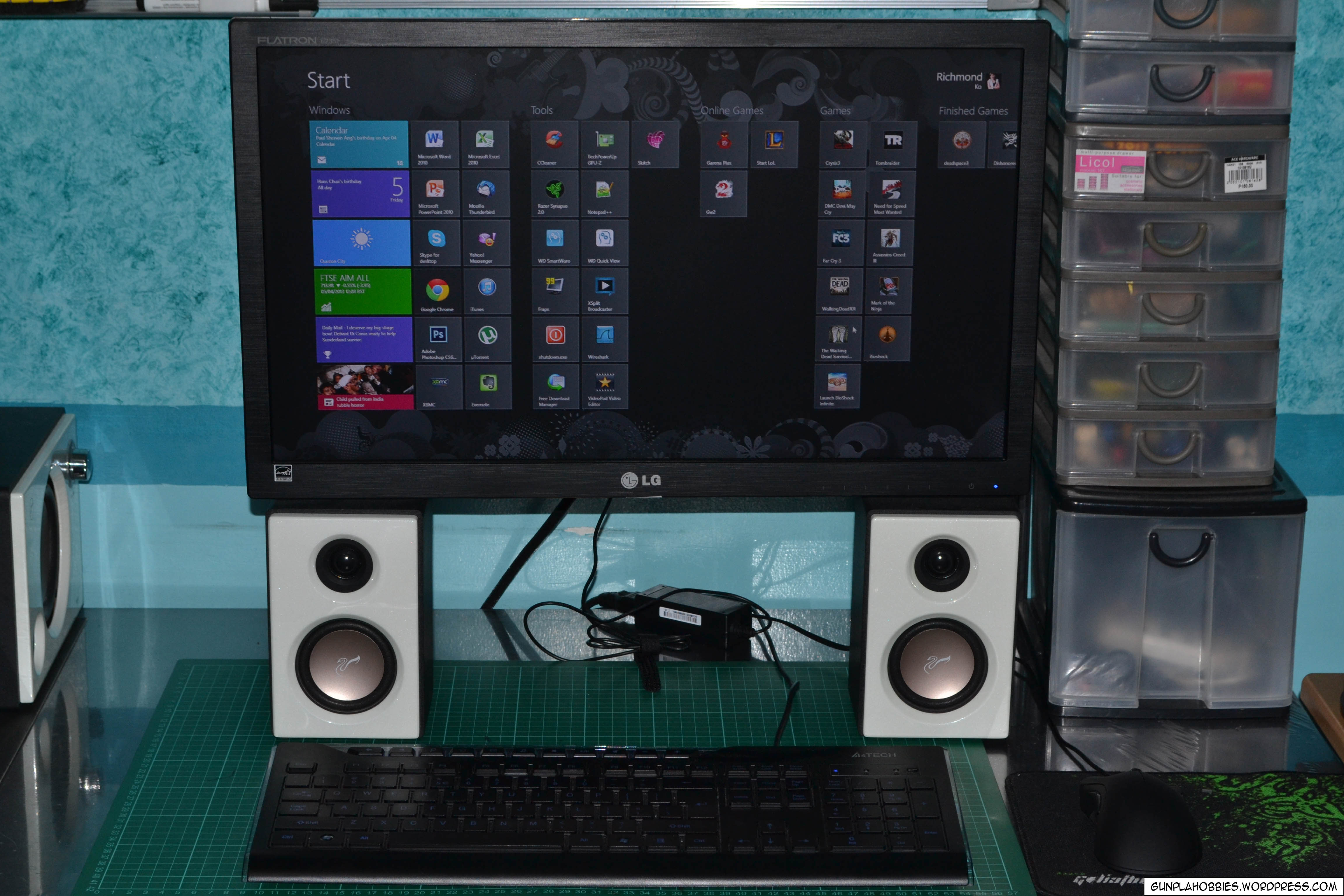

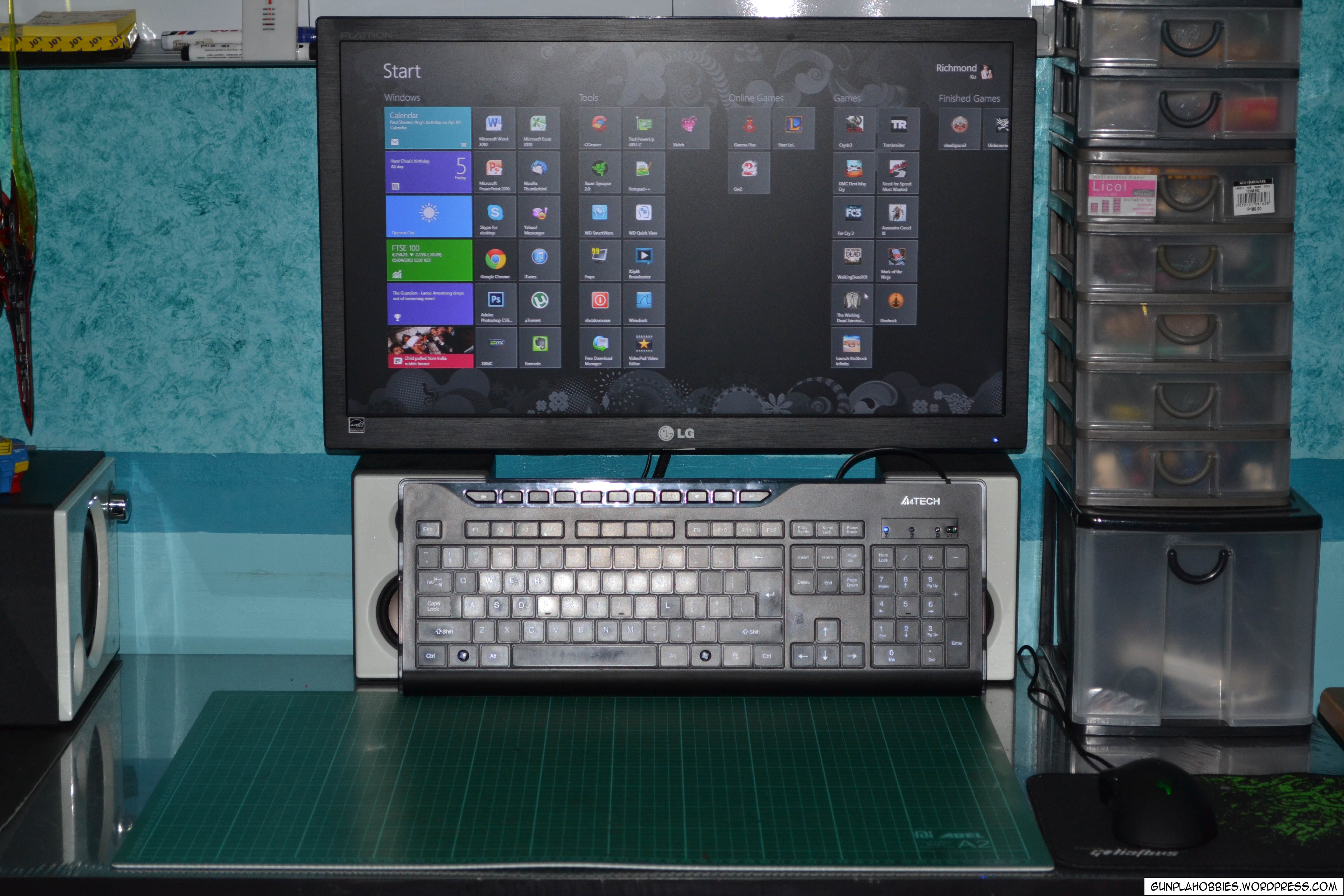

It doesn’t look like a hobbyist work space right? Looks just like a typical personal computer setup with not that much space. But I have set it up in such a way that my computer work space transforms into my hobby work space! I just push the monitor and the speakers inwards and set my keyboard upright by the speakers and viola!:

DSC_0030

DSC_0031

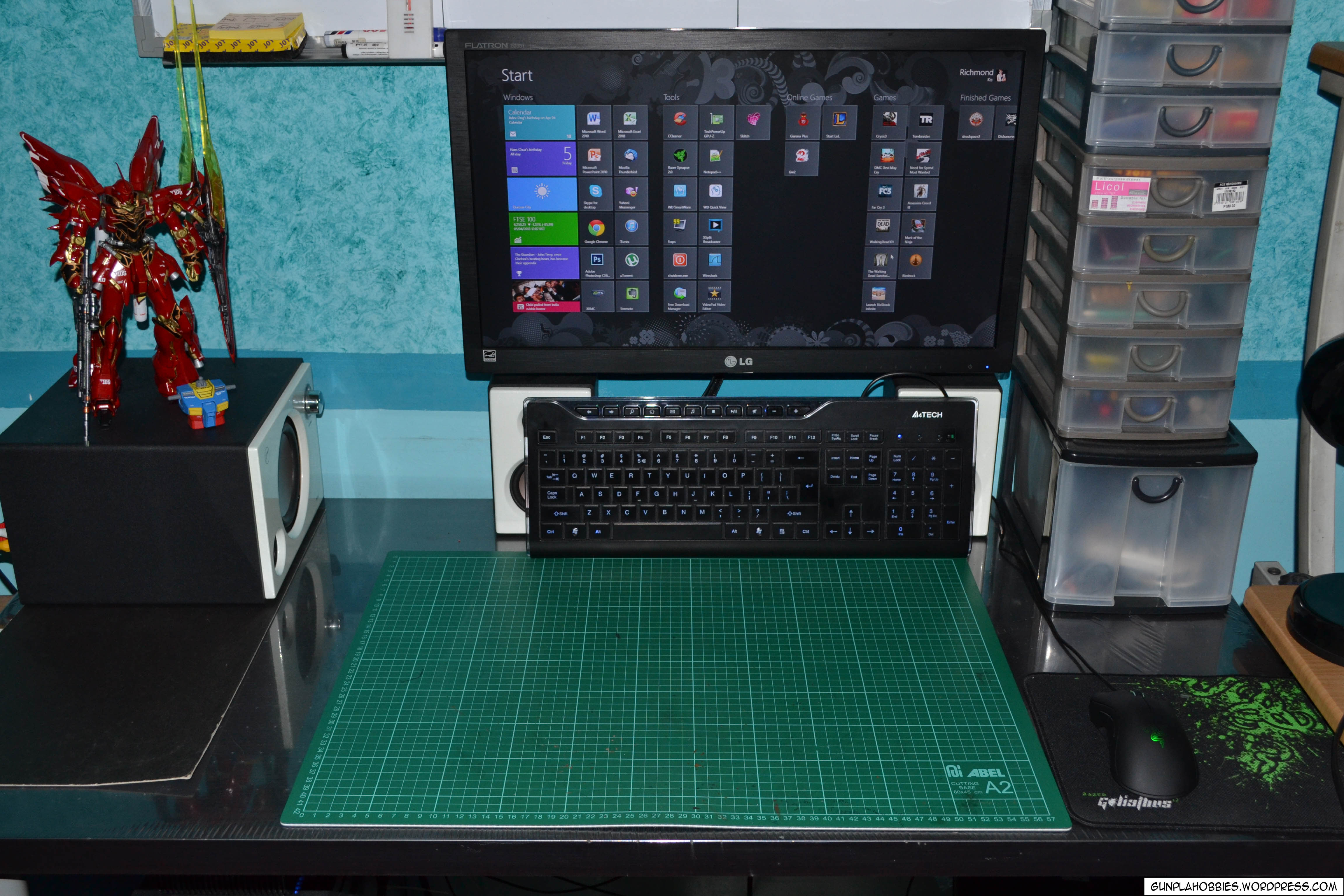

Now I have enough space, large enough, for my hobby! It’s nice to have a large cutting mat so that you’ll not damage your table while cutting. Now Ill show you the various tools I use in modeling Gunpla.

DSC_0033

I use a hobbyist toolbox as you can see above, it houses my cutting tools, paint brushes, paint bottles and various other modeling tools.

DSC_0034

The box has a removable upper part that separates my handheld tools from the paint bottles and thinners.

Let’s get on with the actual tools, first up is of course the side cutters:

DSC_0035

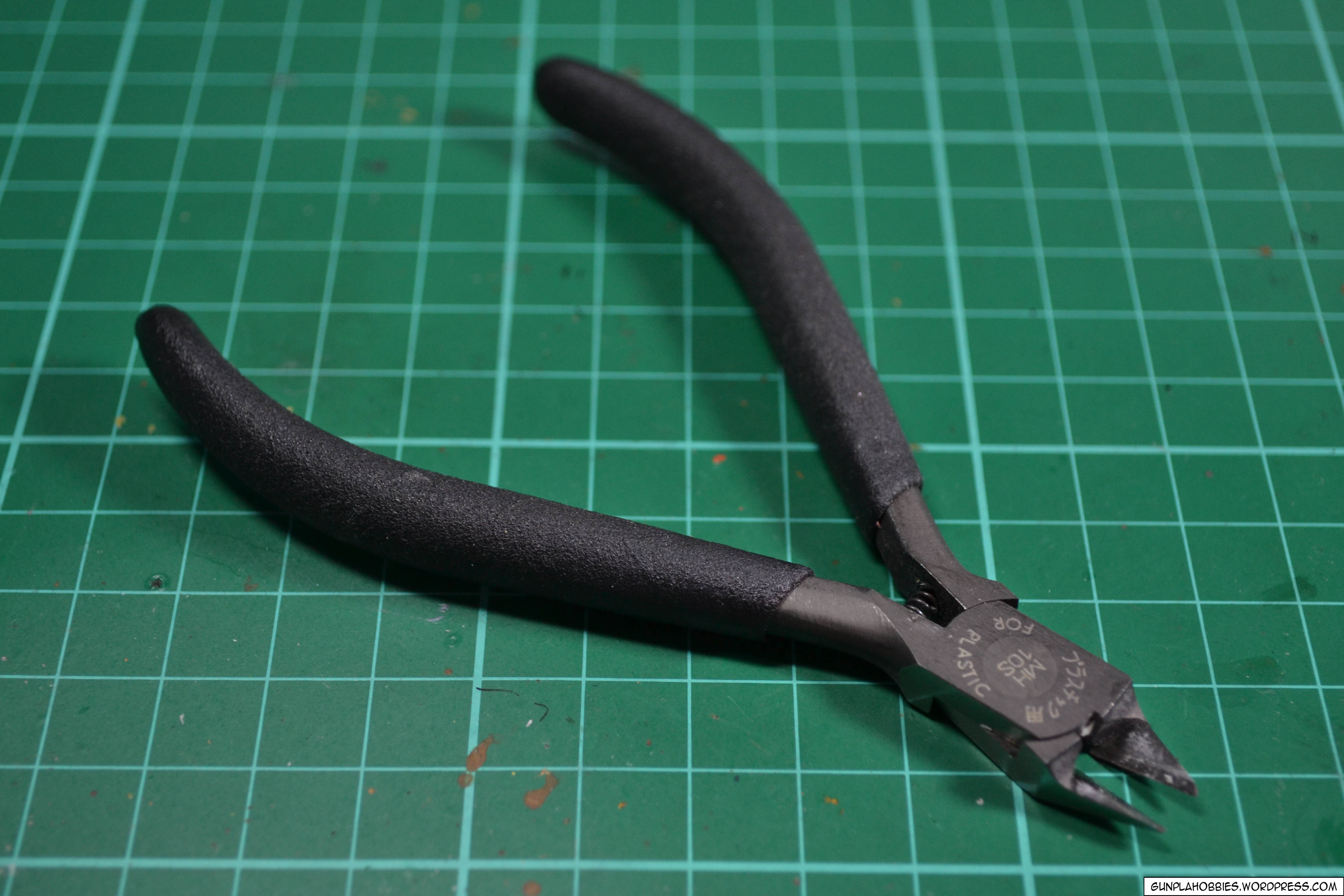

This is Tamiya craft tools no. 35 if I’m not mistaken, it’s the best side cutters I’ve had for a while. It cuts plastic like butter! Great for removing nib marks because stress on the plastic while cutting is reduced due to its high quality design and sharpness. Back then I used diagonal cutting plies that were originally used to cut copper wiring, but they weren’t good enough for cutting plastic and smaller parts. This tool is a good investment if you are planning to pursue Gunpla. It costs around 800+ Php and can be bought at Lil’s Hobby Center.

DSC_0038

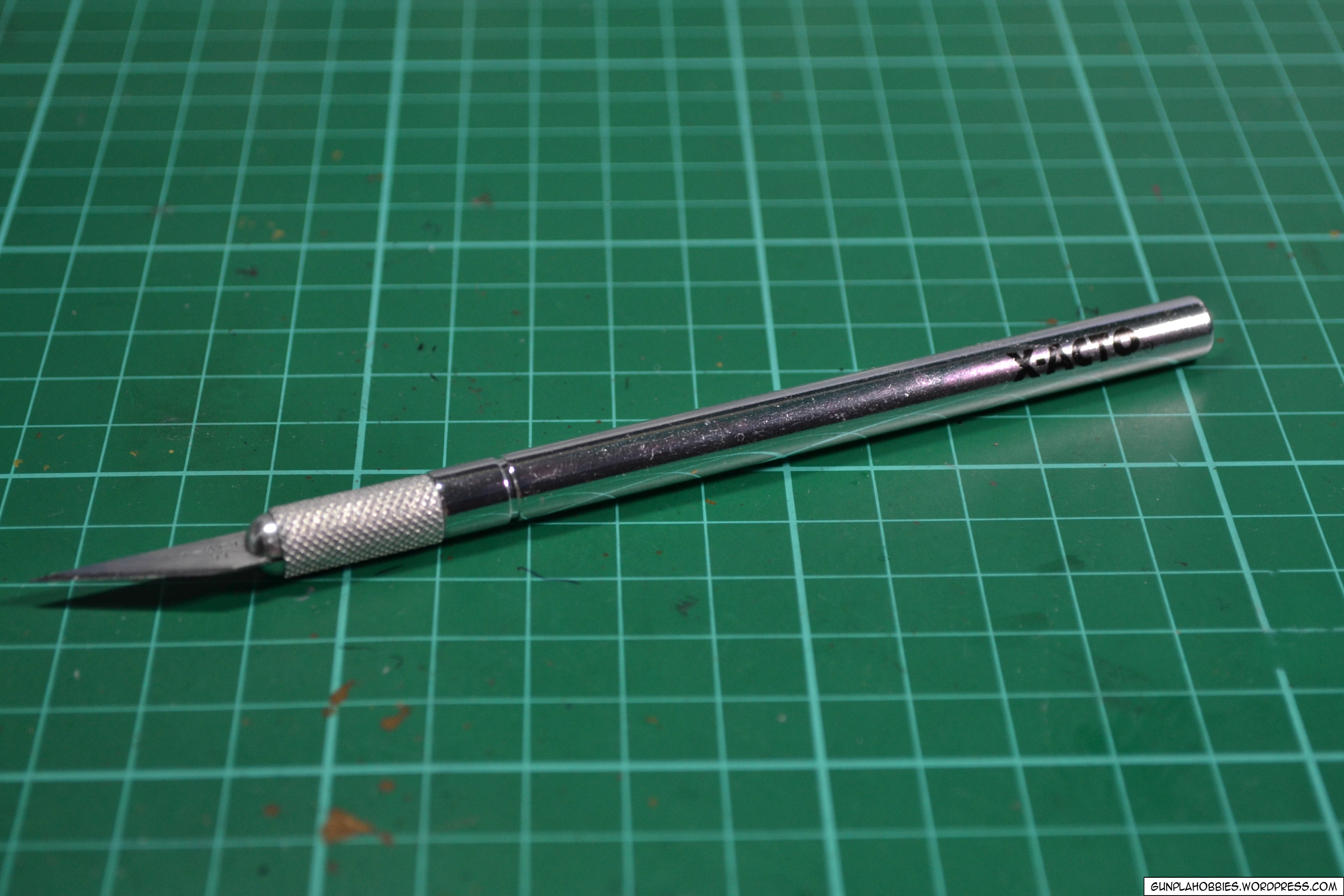

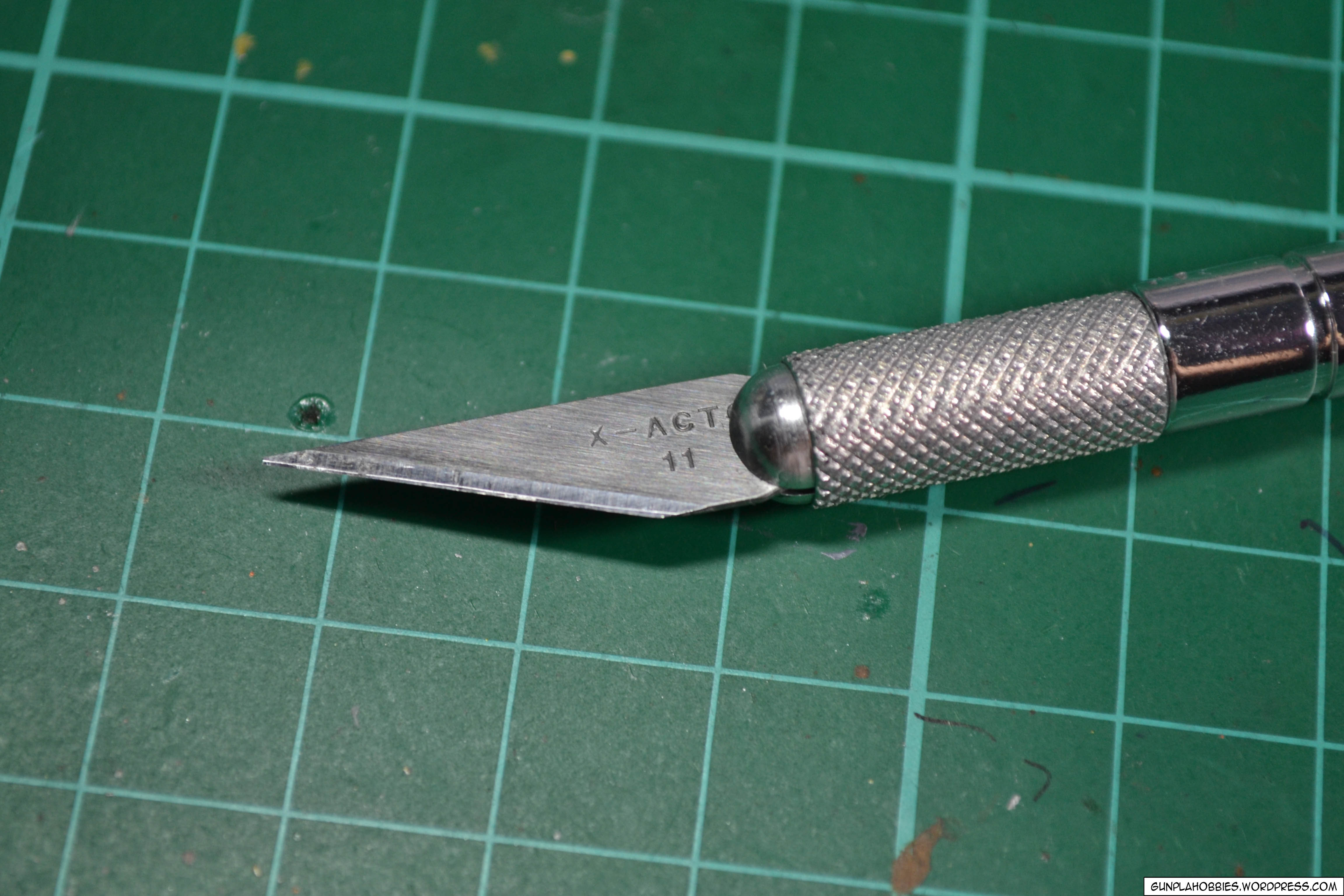

For further cleaning of nib marks I use an X-Acto hobby knife, be careful in using this tool because its extremely sharp! Other than cleaning out nib marks, I also use X-Acto in cutting decals and clear stickers.

DSC_0039

An X-Acto hobby knife can be bought at National Bookstore or at Lil’s hobby shop, it doesn’t cost as much as the side cutters. I think it’s just around 100+ Php if you buy this one without a cap.

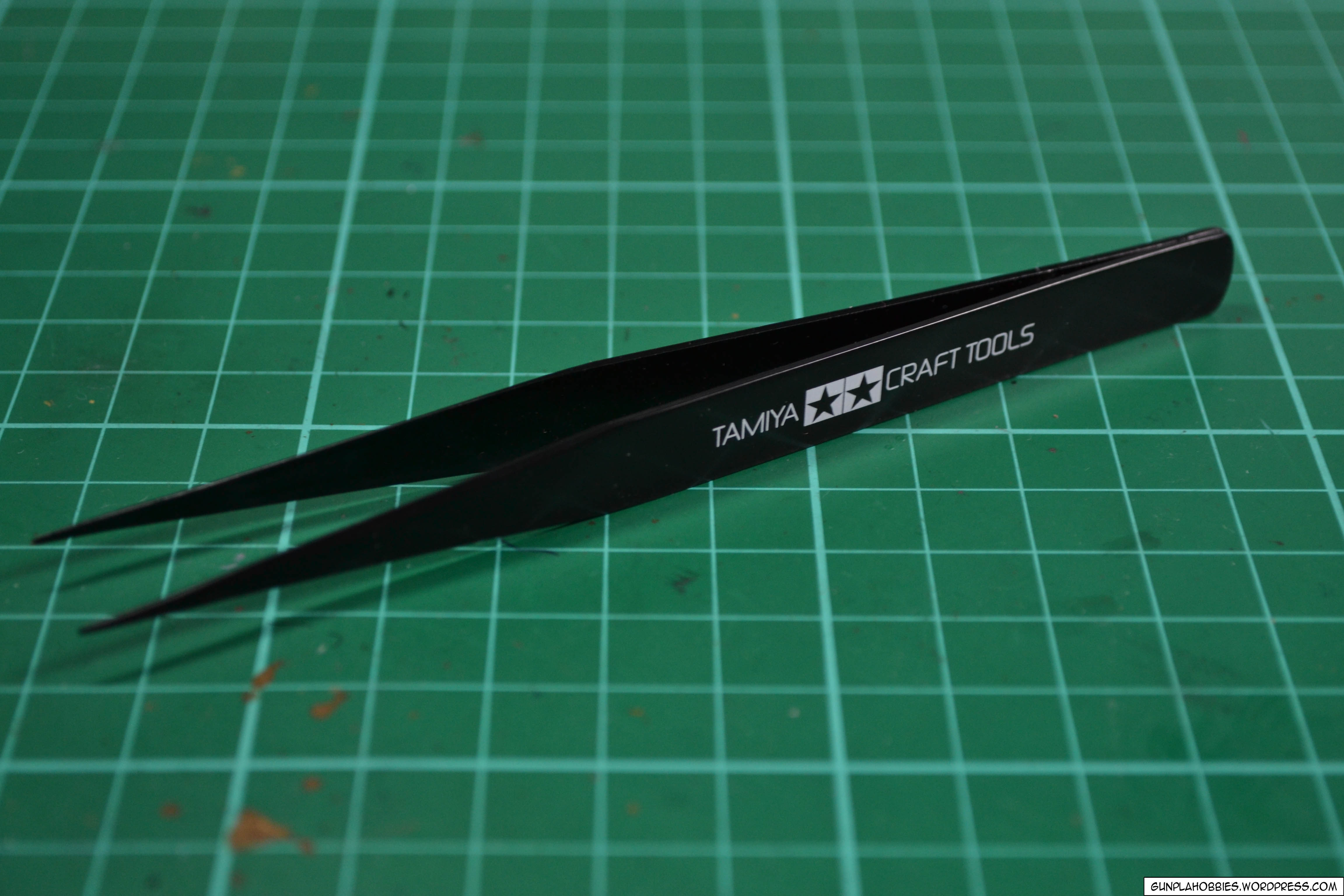

For picking up small parts and putting clear stickers, I use a pair of Tamiya tweezers! It’s hard to use your fingers in applying stickers and decals since they are so small. It’s easier to apply the stickers with the use of these tweezers. The metal is strong and sturdy even at the tips that you can also use this tool in taking apart parts.

DSC_0036

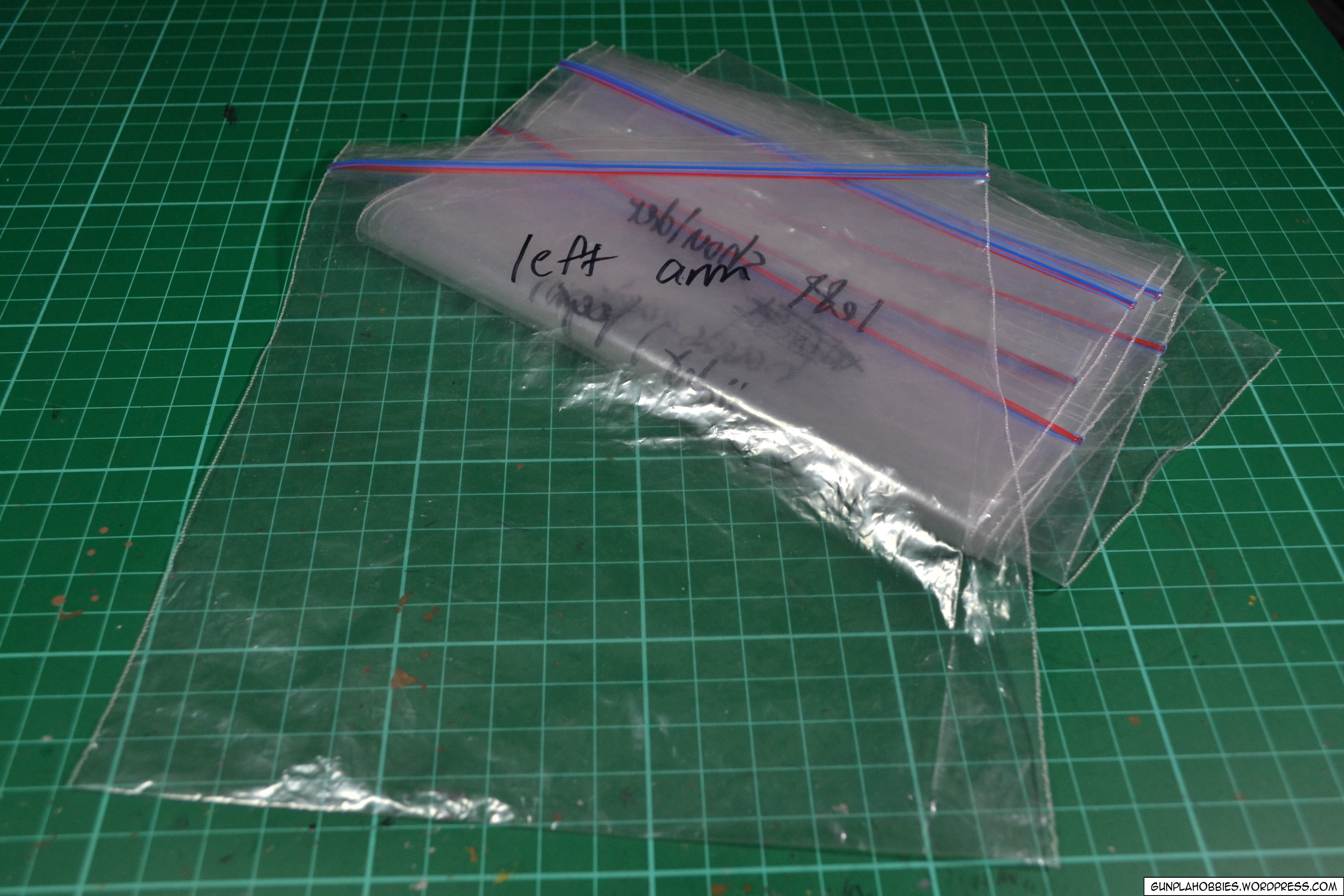

I use plastic sandwich bags to keep the parts that I have separated from the runners ( I’m a organized freak I suppose):

DSC_0064

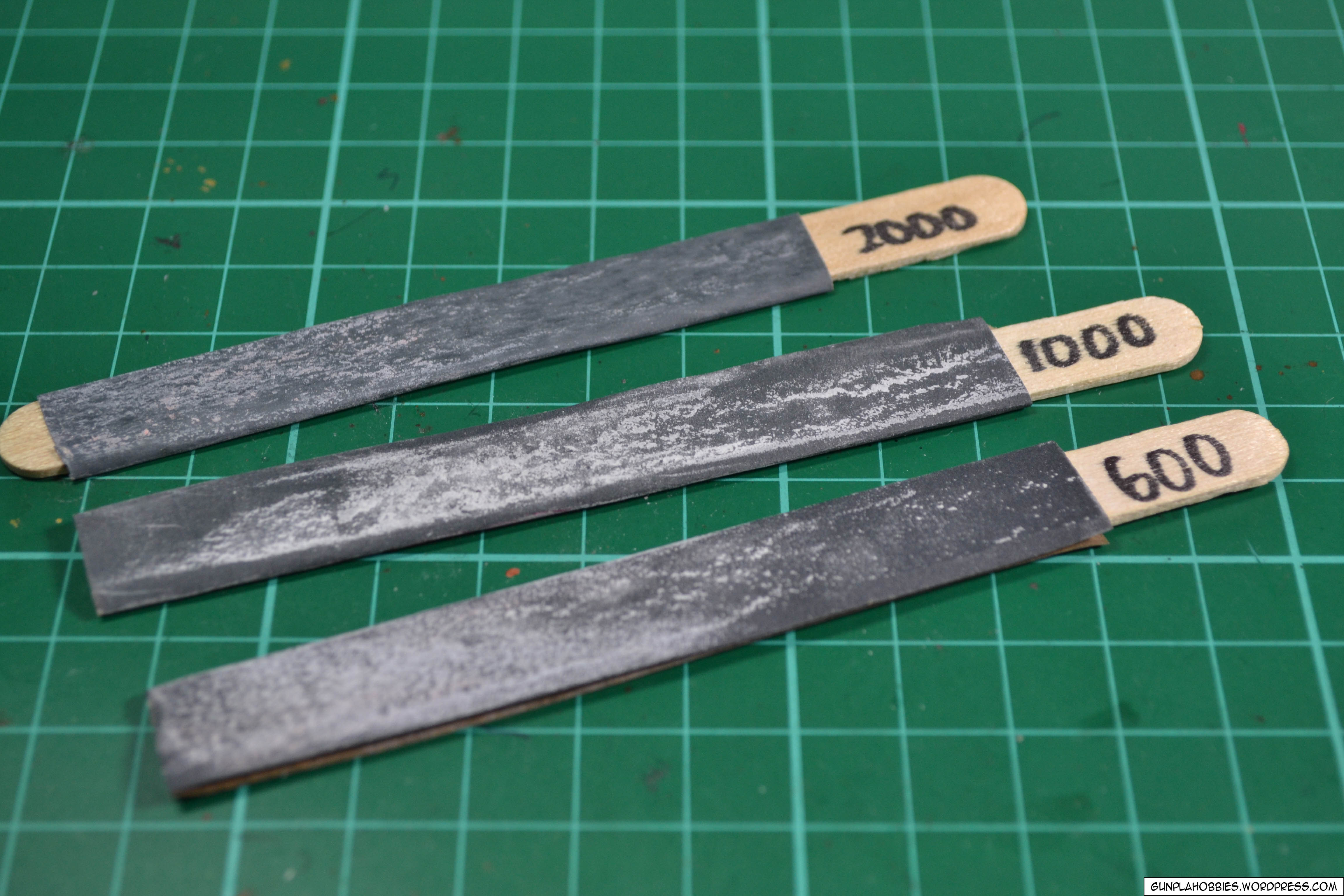

If still have those nasty nib marks after using your side cutters and hobby knife, you can use sanding sticks! I made my own at home using Popsicle sticks and cut out sandpaper then glued them together.

DSC_0041

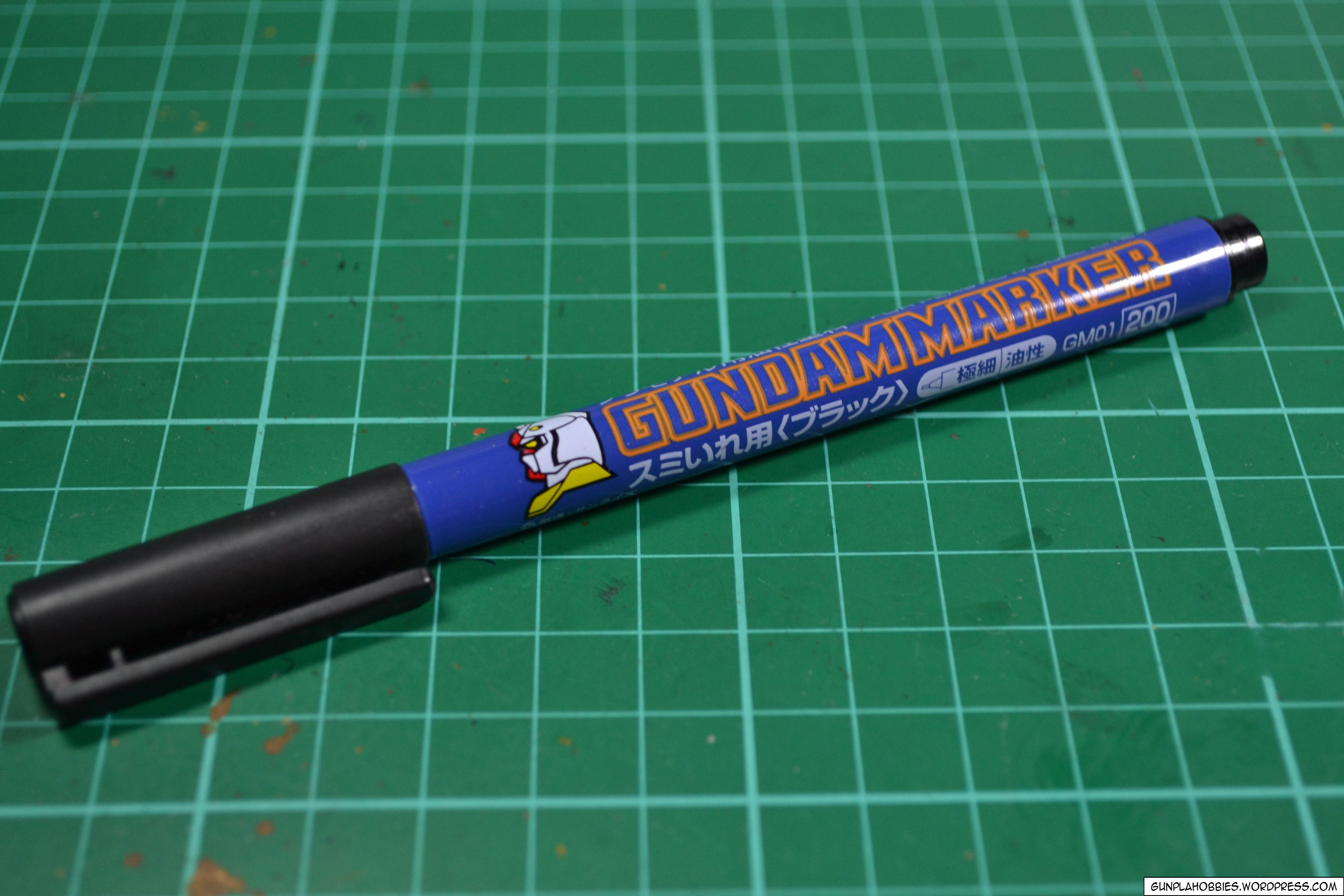

When you’re all done sanding and cleaning the nib marks, you can now do panel lining if you don’t plan to paint. Most of my collection I’ve used a fine Gundam Marker GM01, but recently I’ve been using enamel paint in doing my panel lines. This costs around 100+Php at Gunpla stores.

DSC_0040

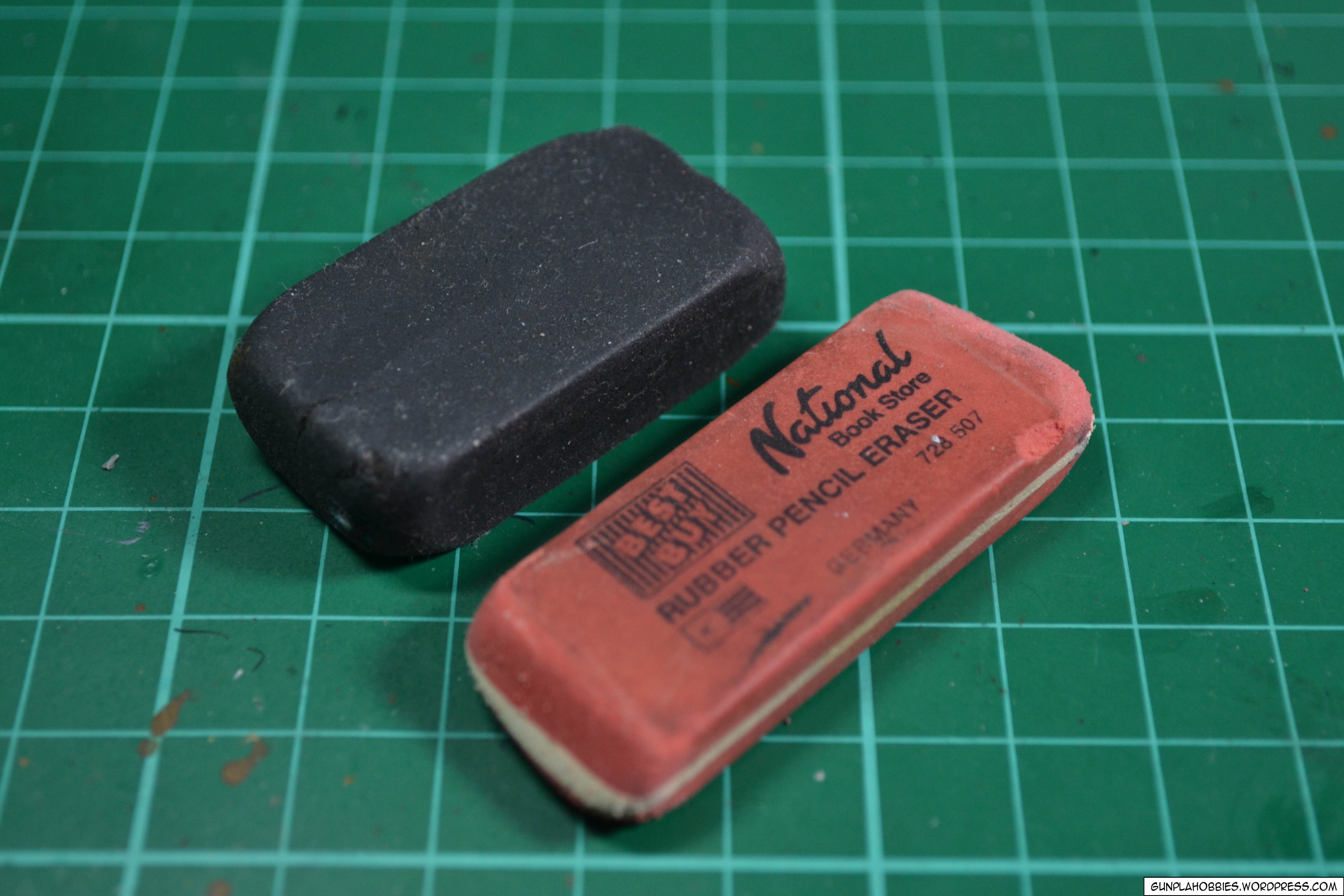

If I happen to make a mistake or if the lines are too thick, I use rubber erasers to clean them out:

DSC_0045This one is Mr. Mark Setter, it is used for water slide decals to make the adhere well to the surface and make them look painted on the surface:

DSC_0058

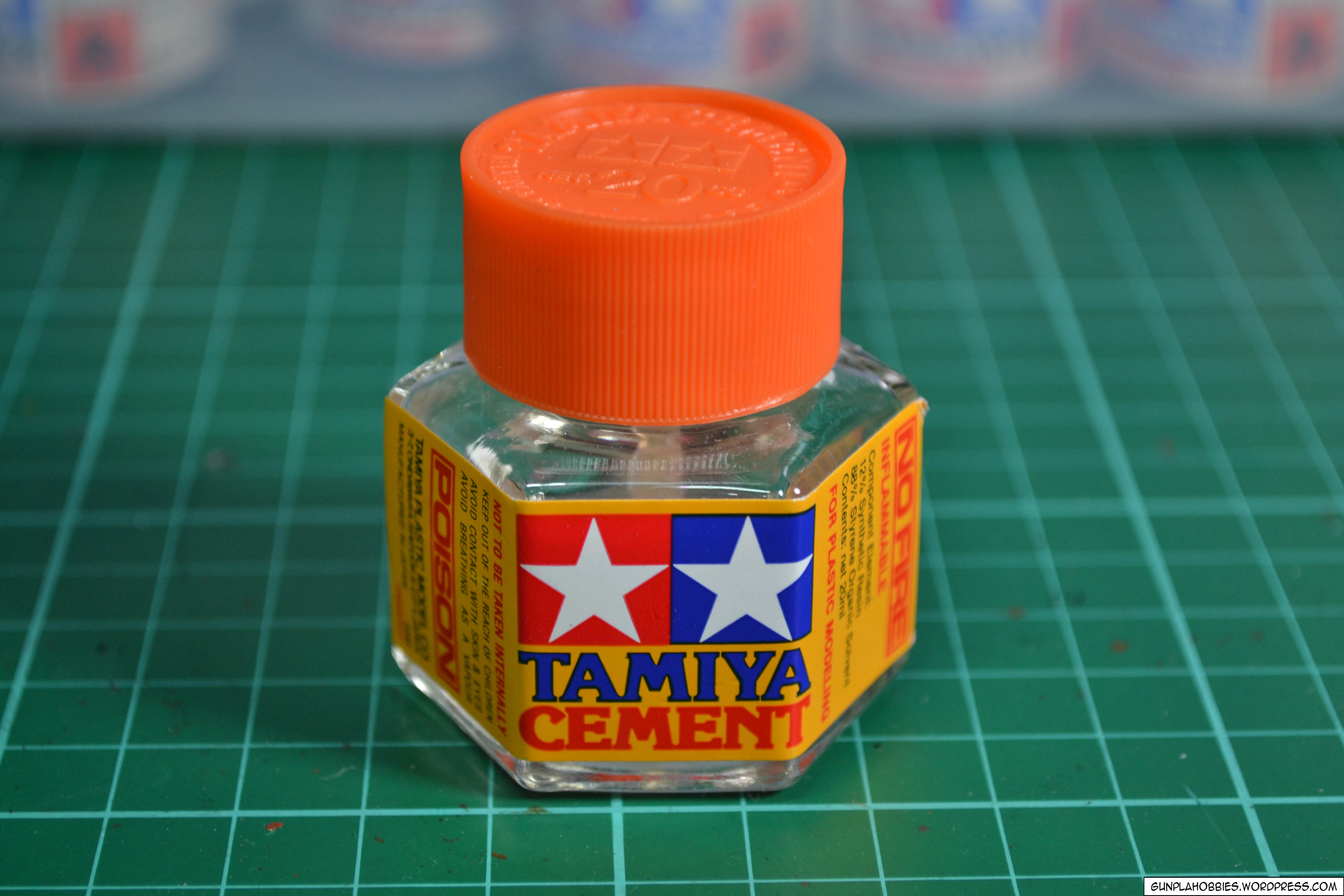

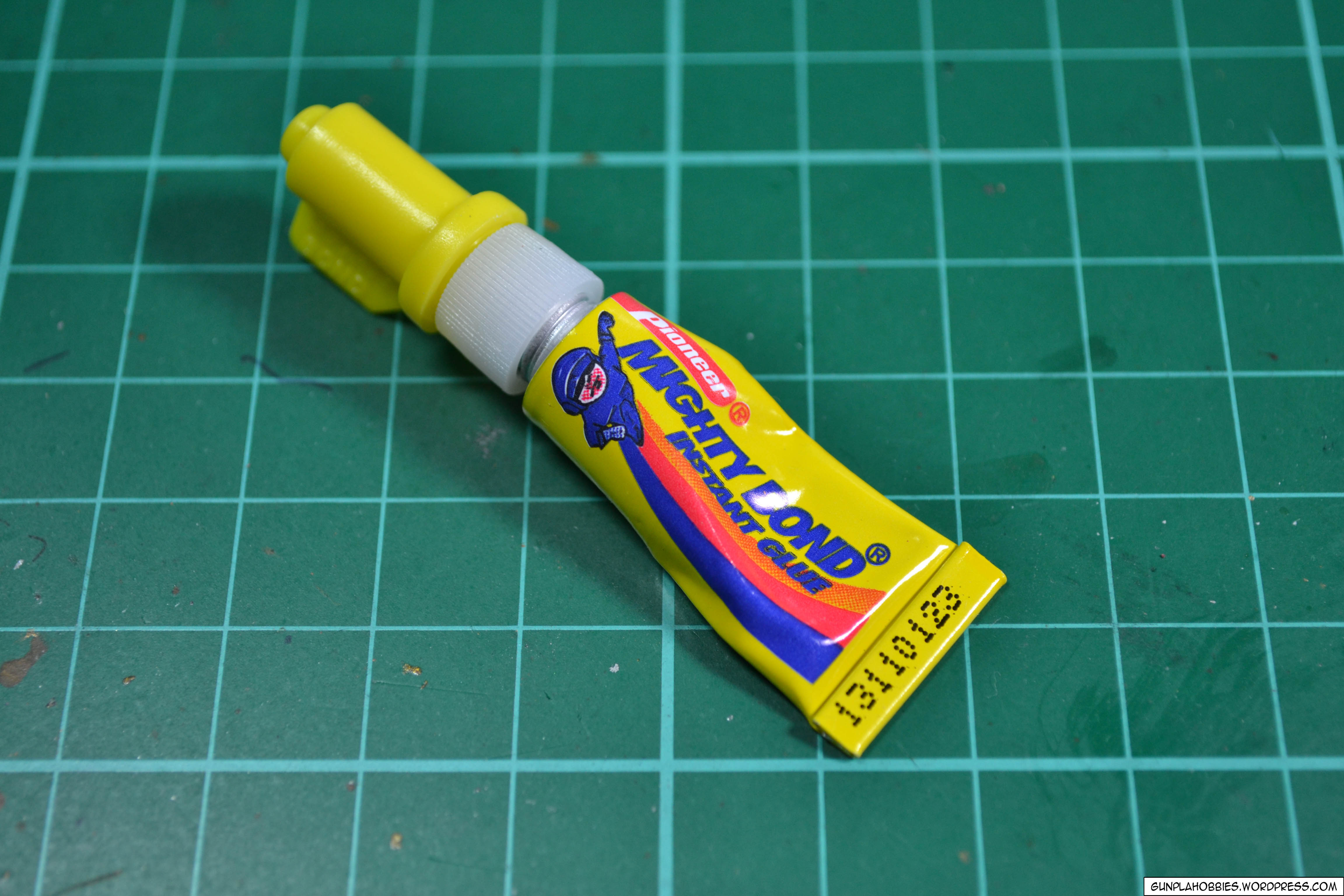

If you accidentally broke a part, you can use plastic cement in fixing it, it welds the plastic together. Plastic cement will do in most situations but they are cases wherein plastic cement can’t hold the part together and I use super glue instead, the problem with super glues in the past is that they leave a nasty white residue, but recently I’ve discovered the newer ones today don’t leave white residues anymore.  Plastic cement is also used in removing seam lines.

DSC_0056

DSC_0048

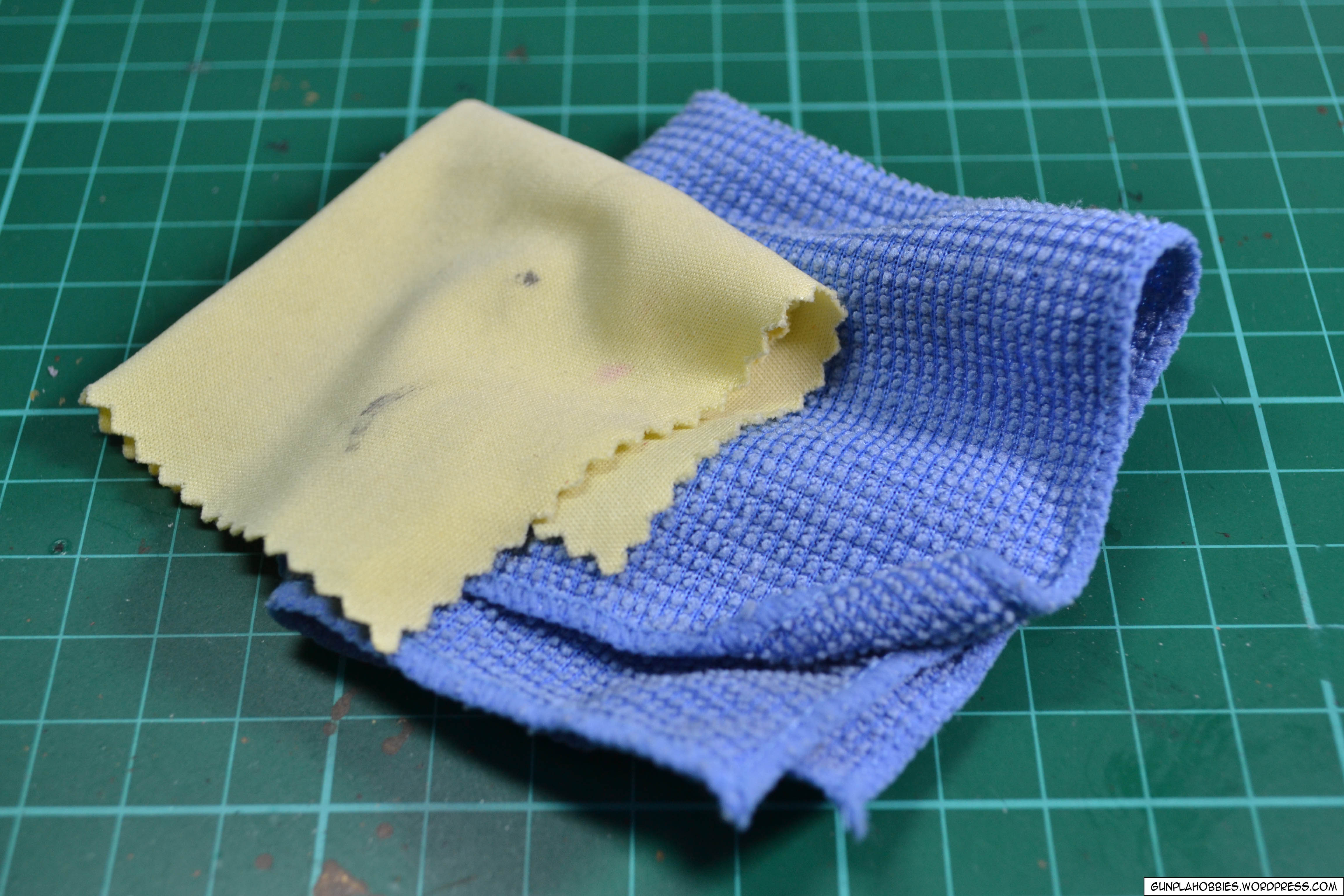

Sanding can produce a lot of plastic dust around the part, I use some pieces of cloth to clean them out:

DSC_0046

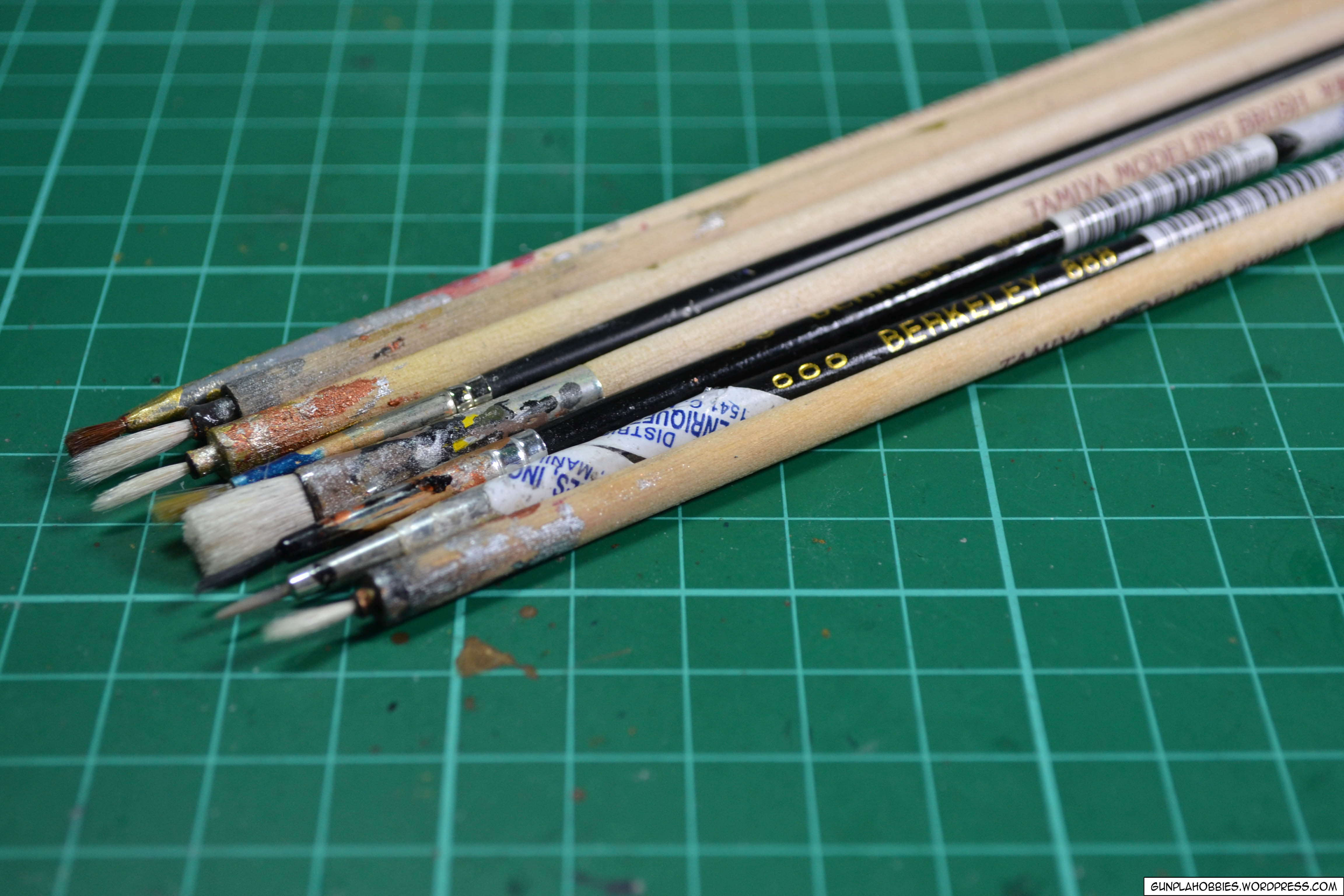

Now if you’re on to painting, you’ll going to need paint brushes. I use various types of paint brushes, mostly the finer ones depending on the application.

DSC_0042

DSC_0044

It doesn’t have to be Tamiya brand, some of my finest paint brushes are cheap and can also be bought at National bookstore.

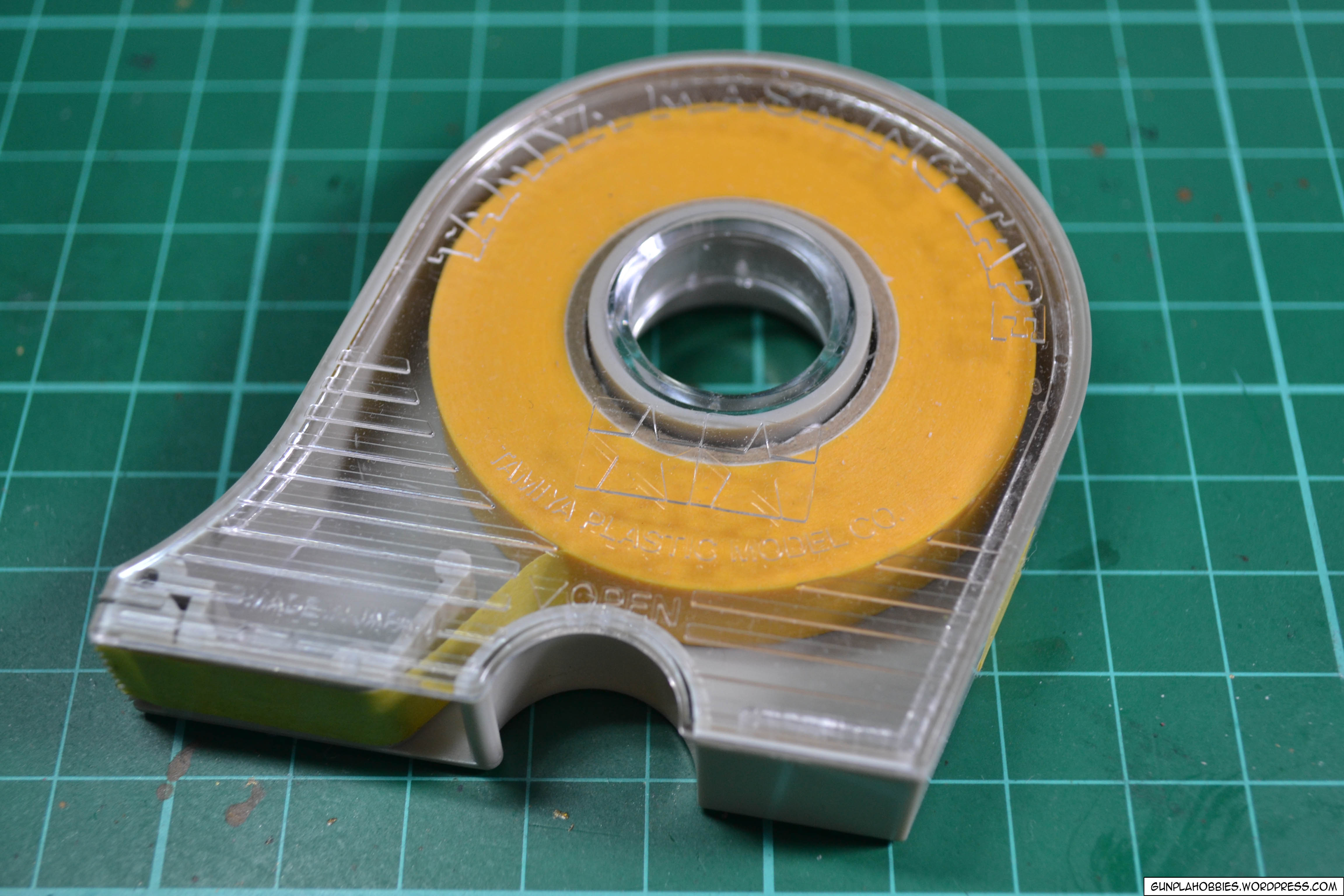

These are Tamiya hobby grade masking tape. I have tried using ordinary masking type but it just doesn’t work, hobby grade masking tape are the real deal! They mask the part well during painting. They can also be used to hold dry transfer decal pieces on to the part before you rub it on the part.

DSC_0047

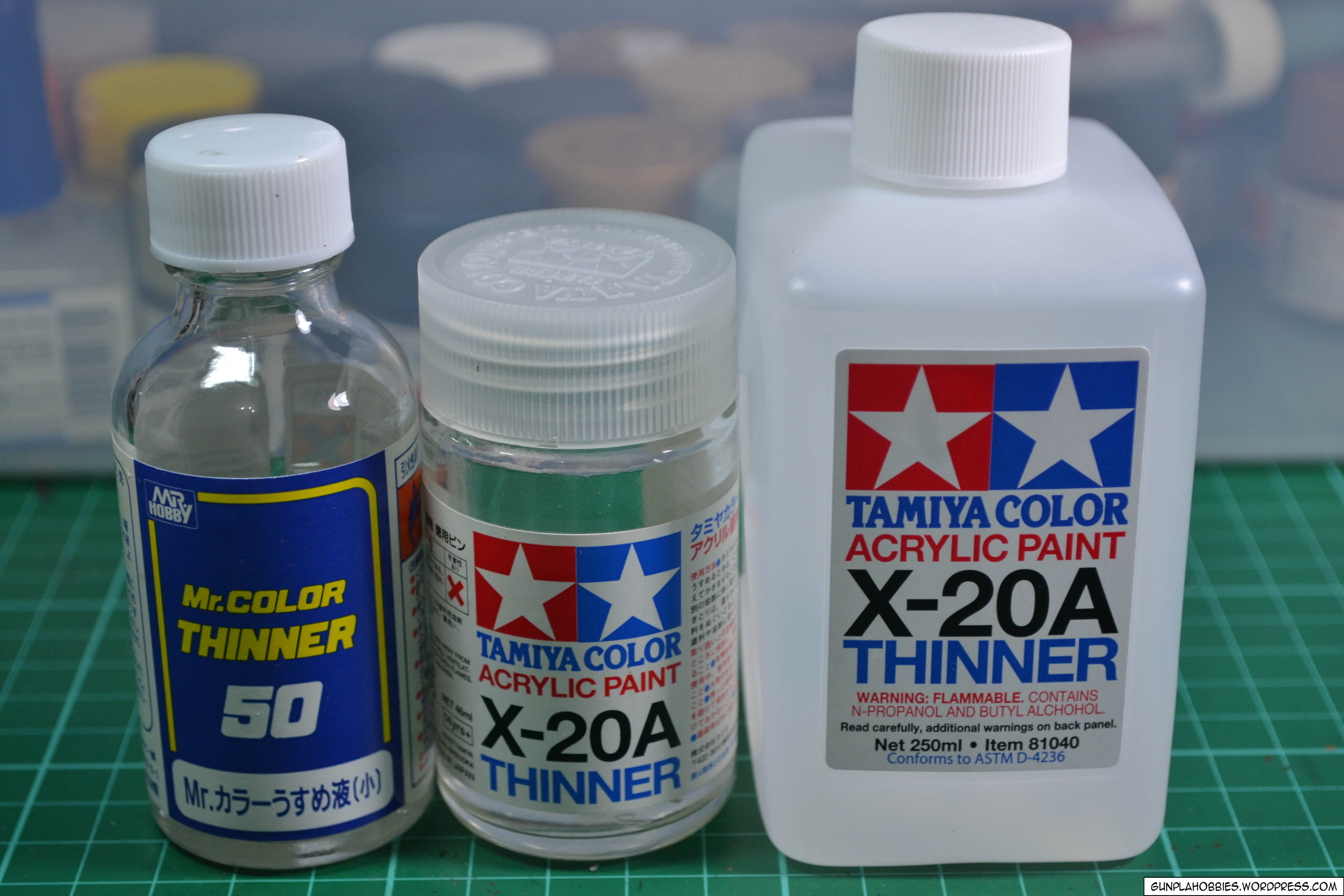

Thinners! Thinners are very important in painting, I mainly use them to dilute my paint so that it will even out smoothly when painted on to the surface. It can also be used to strip paint if you changed your mind about a color.

DSC_0049

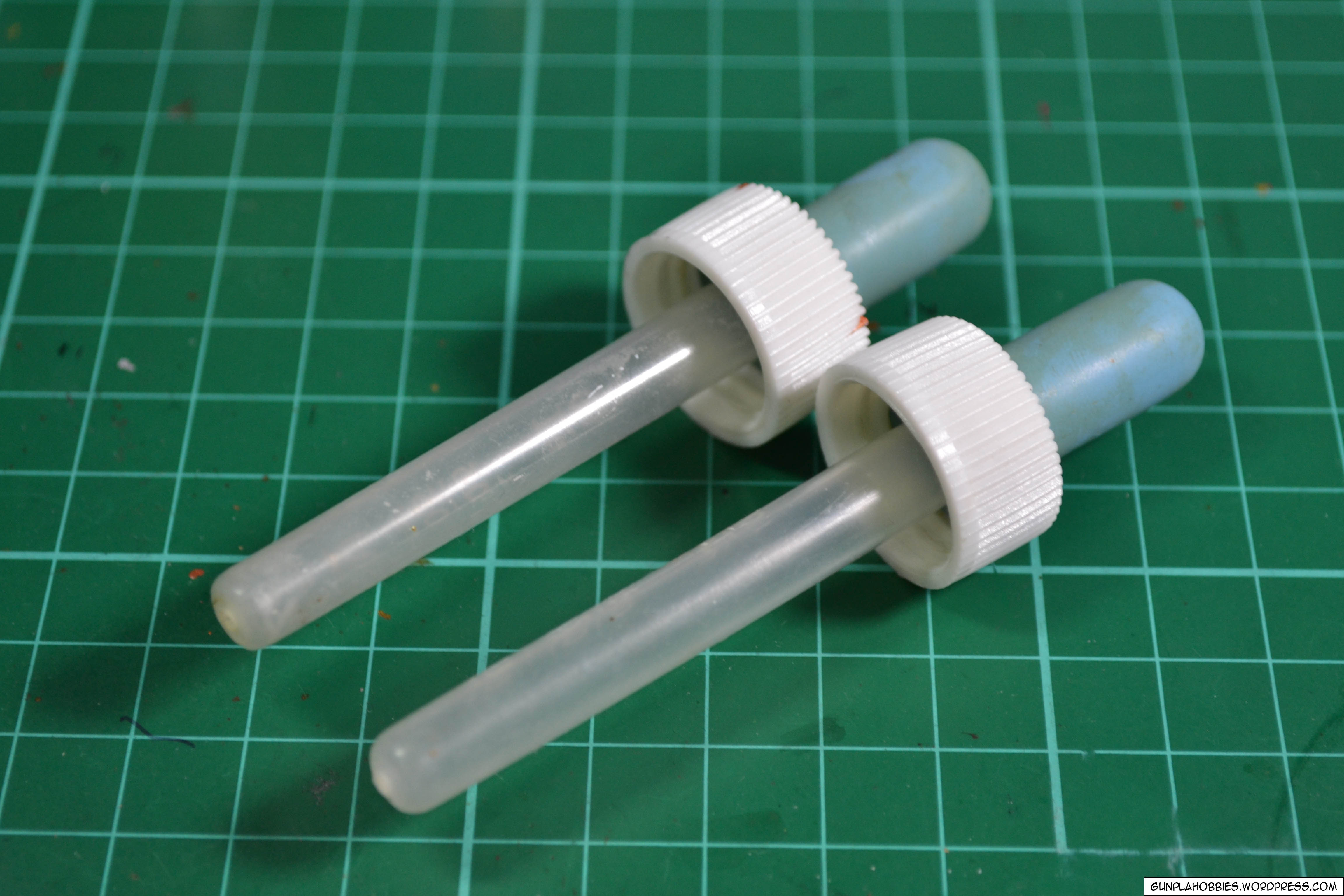

I use some cheap medicine droppers to get thinner from the thinner bottles and drop them on to my mixing  palette.

DSC_0051

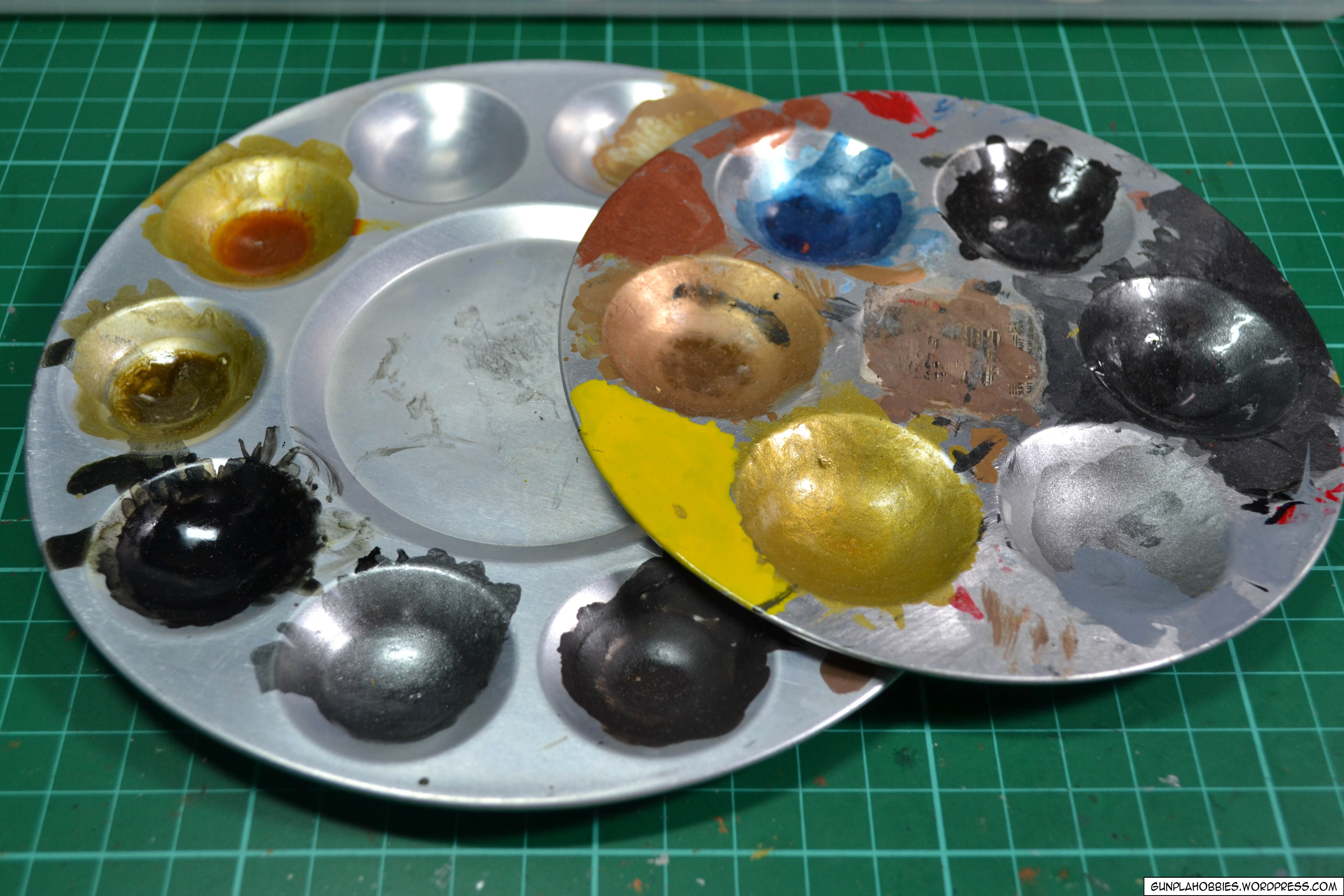

Of course you’ll need something to mix your paint and thinner on. Some aluminum palettes will do the job. I prefer aluminum ones than the plastic ones because the plastic ones melt when you put too much thinner on to it.

DSC_0072

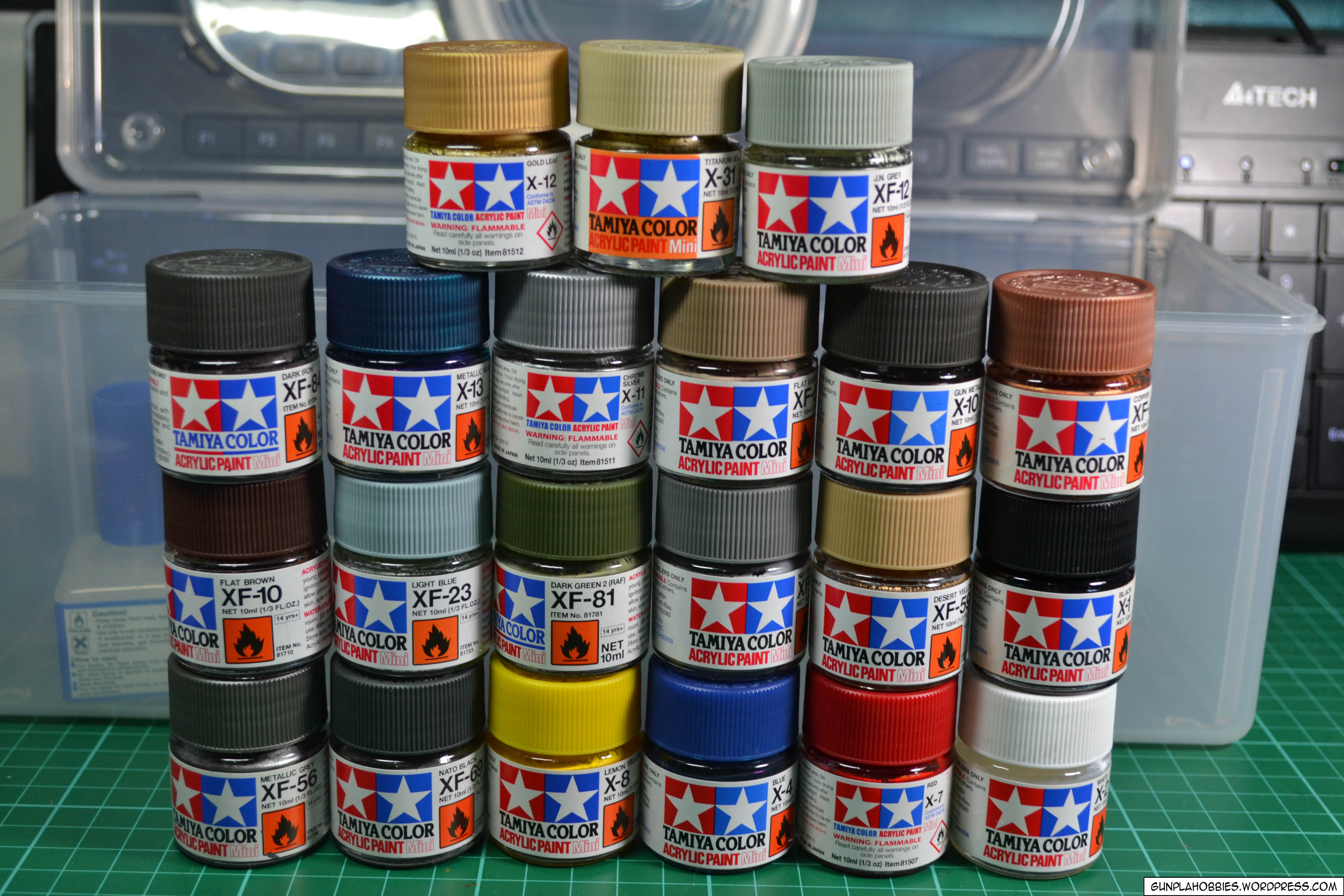

I did hand-painting in most of my collection. It’s easy to use acrylic paints in hand-painting since they are water based and can be thinned using water. But I prefer thinning them using specialized thinners as I mentioned above. My Tamiya acrylic paint bottle collection is growing as my hobby progresses.

DSC_0052

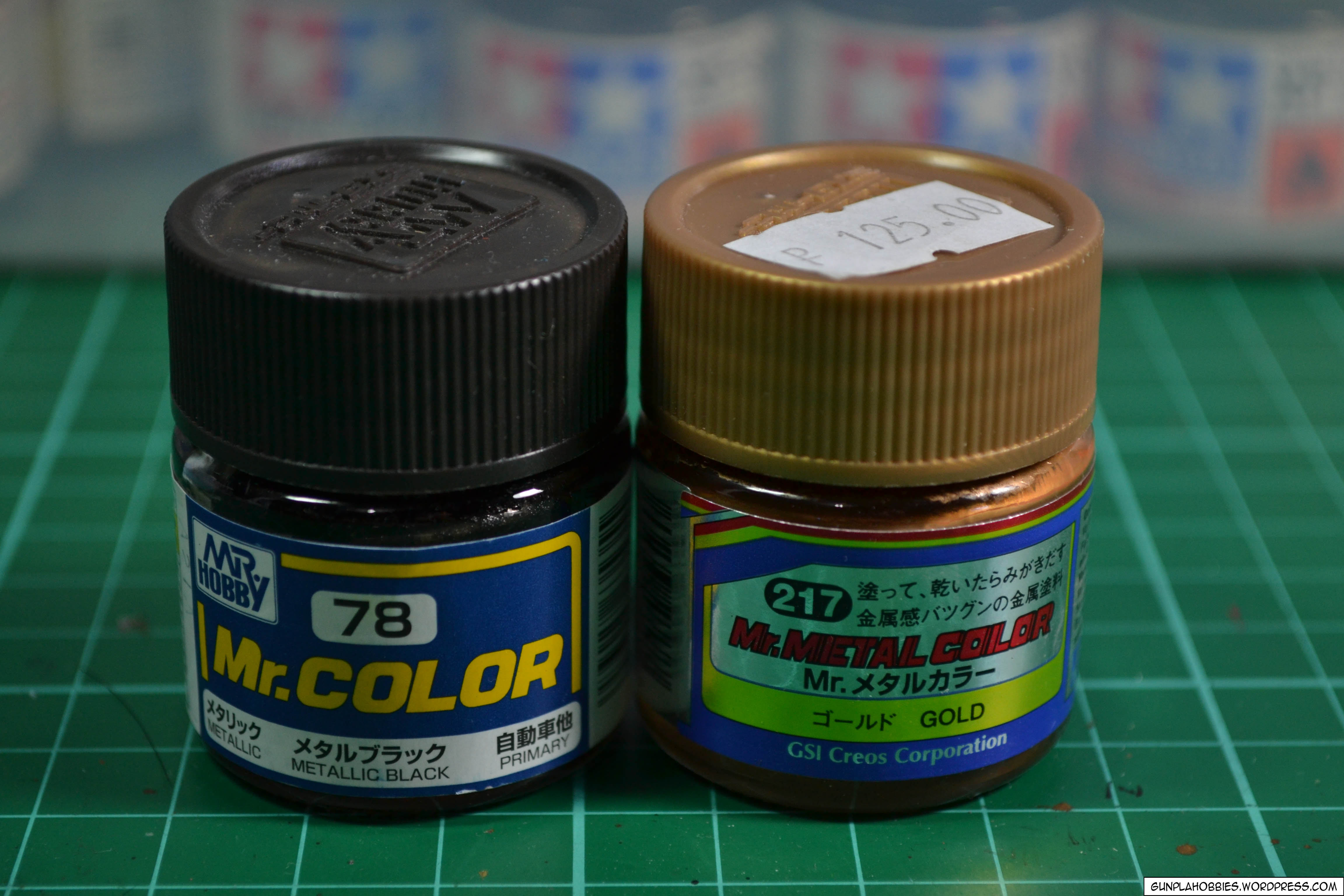

You can also use lacquer paint bottles but they are harder to use because you will need a special thinner to have them even out on a surface. And they dry up pretty quickly so you have to work fast to have a smooth even finish.
DSC_0053

I’m starting to use enamel paint in panel lining using the enamel wash method, you simply dilute the paint such that it is runny. When you apply them to the part where you want to panel line, it will just ‘run’ on the line! Then you can just clean the excess afterwards using cotton buds and a little amount of lighter fluid.

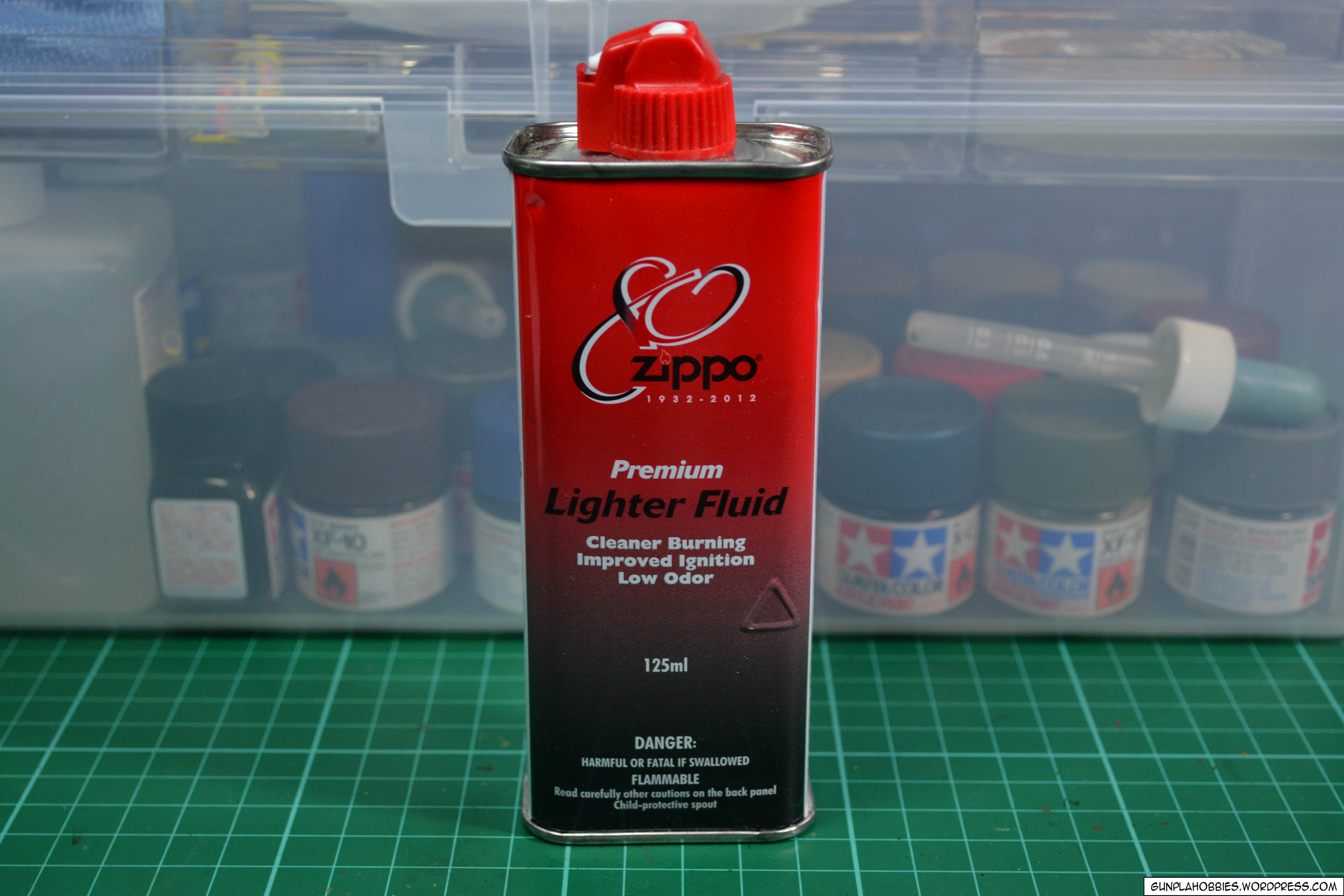

DSC_0054I use Zippo lighter fluid to dilute the enamel paint, be careful not to start a fire though:

DSC_0070

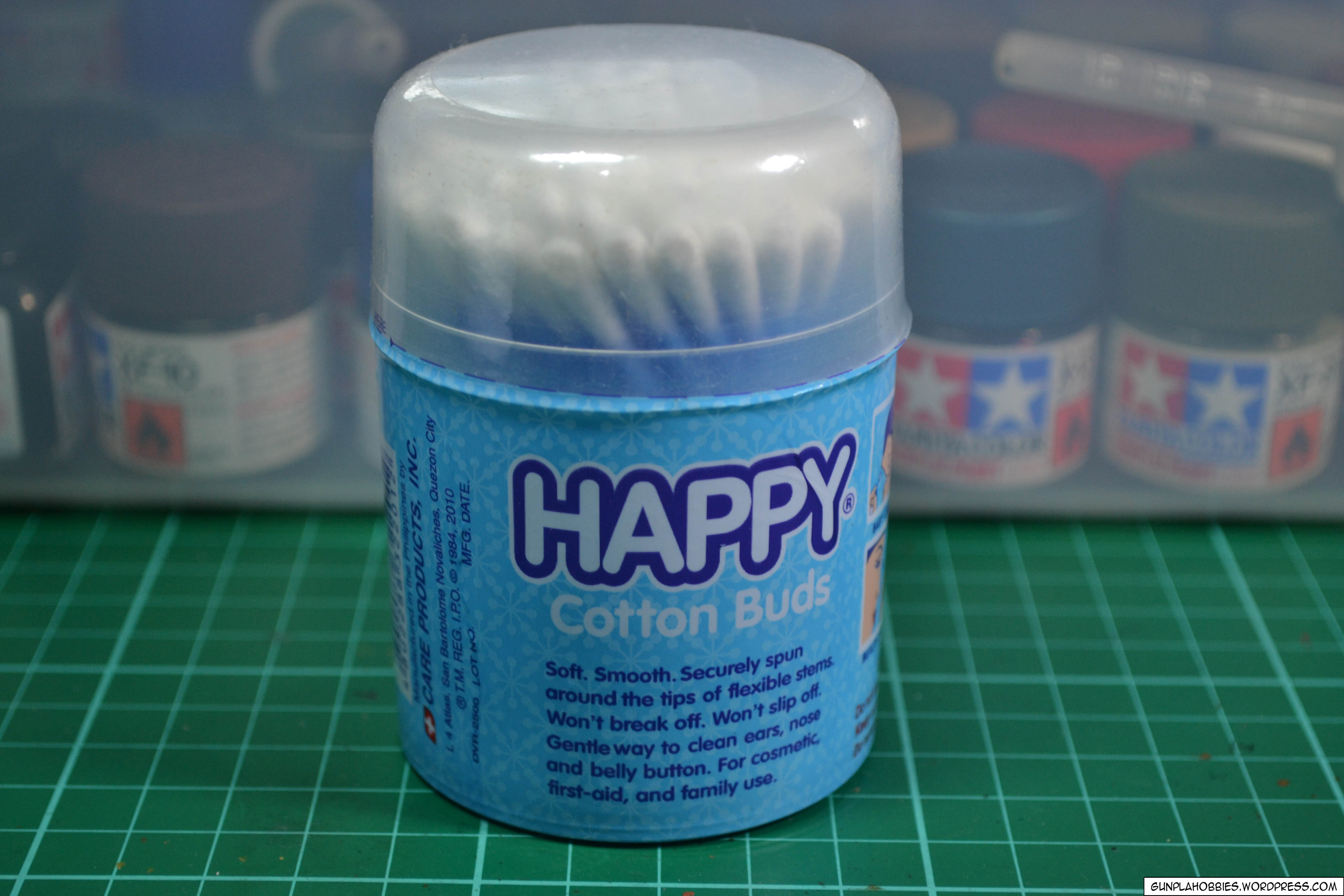

Some cotton buds would be handy in cleaning, you can also use these in applying weathering on your model:

DSC_0071

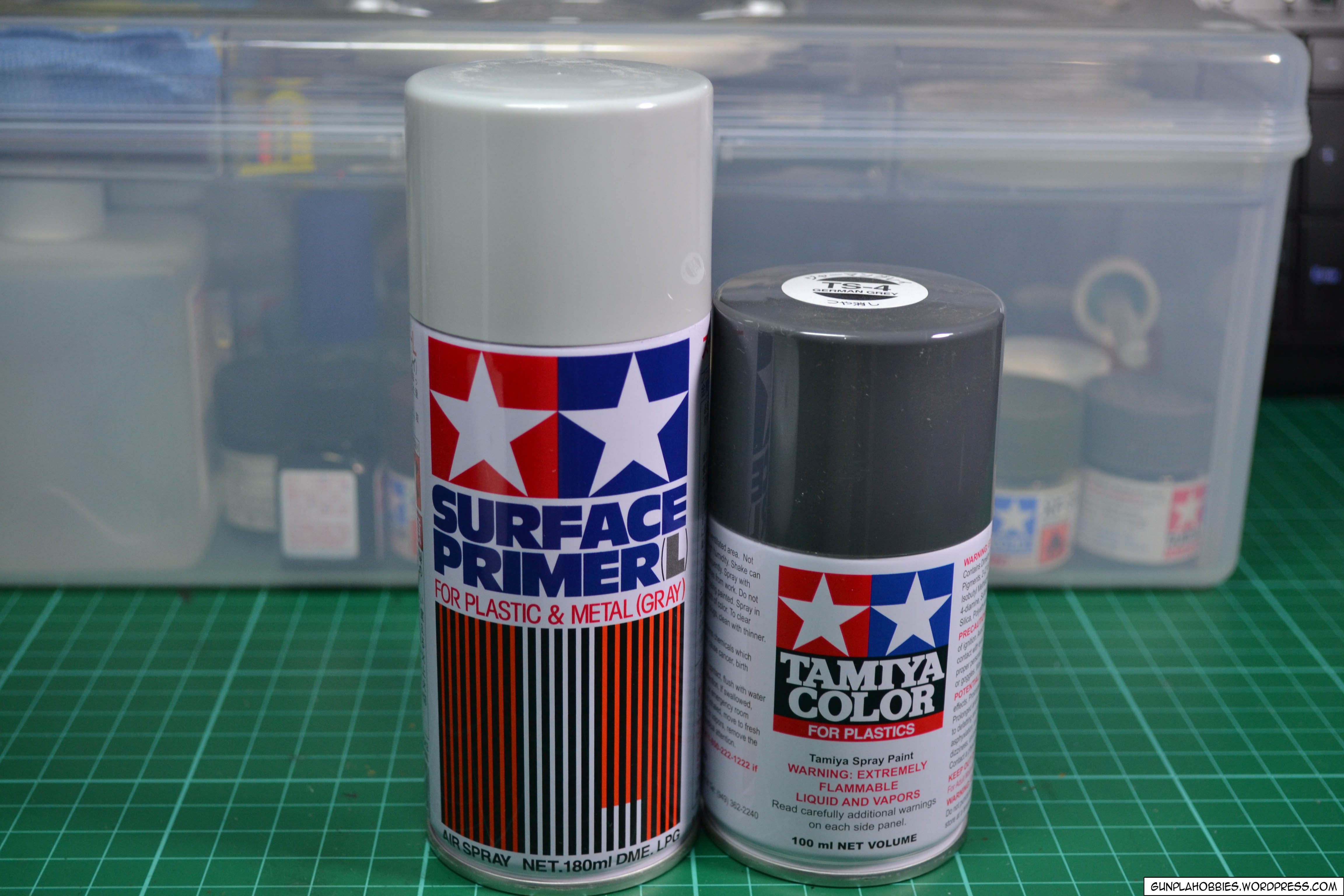

Other than hand-painting, I have also tried spray painting, sometimes I use a primer sometimes I do not, it depends on the situation. I also have a collection of Tamiya spray cans but I did not show them all in the photo because they’re many. Primer has various uses, it can be used so that paint will adhere to the plastic surface, or it can be used to flatten and clean out scratch marks or plastic imperfections. It can also be used to brighten or darken the colors you desire for your kit since the primer will be the base coat. I have learned in spray painting (made a lot of mistakes already) that you have to be patient and spray in thin layers, wait for them to dry and spray another thin later if you are not satisfied with the result. This is done so that the paint will not run on the surface or leave nasty pools of paint that you would have to redo, sand and paint again.

DSC_0061For cheaper alternatives, you can use industrial spray cans found in hardware stores, the downside in using the cheaper alternatives is that the spray nozzle has a wider blast range and larger spray particles. You would have to increase your distance to the part being painted as compared to using Tamiya spray cans. Tamiya spray cans produce finer particles therefore a smoother even finish.

DSC_0062

For topcoat I either use Mr Hobby ones or Bosny No. 191 for matte and 190 for gloss:

DSC_0060

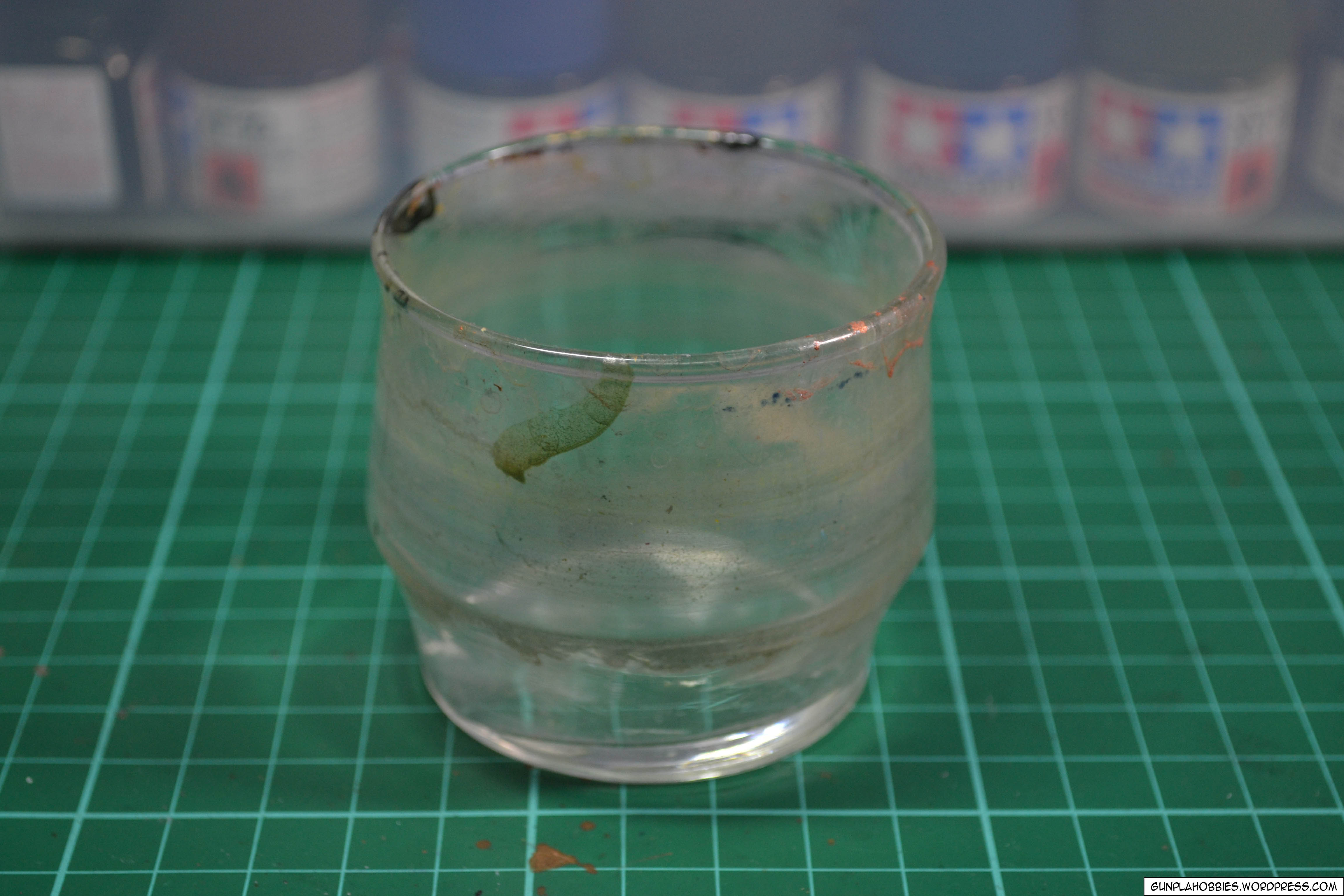

For washing my paint brushes, I simply use a small glass like the photo below. I put water in it to clean paint brushes that I have used for acrylic paints. You cannot dip a lacquer tainted or enamel tainted paintbrush in water, it will not wash off, it will just harden the paint on the bristles and ruin your brush. Its best to clean brushes that have been used with enamel or lacquer paints using specialized thinner for the specific paint types.

DSC_0073

For holding the parts during painting, I use bamboo barbecue sticks with small clips or blue tack depending on the part that you want to hold, other people use alligator clips but I haven’t tried them before:

DSC_0066

I have a whole lot of them in an HG kit box:

DSC_0067

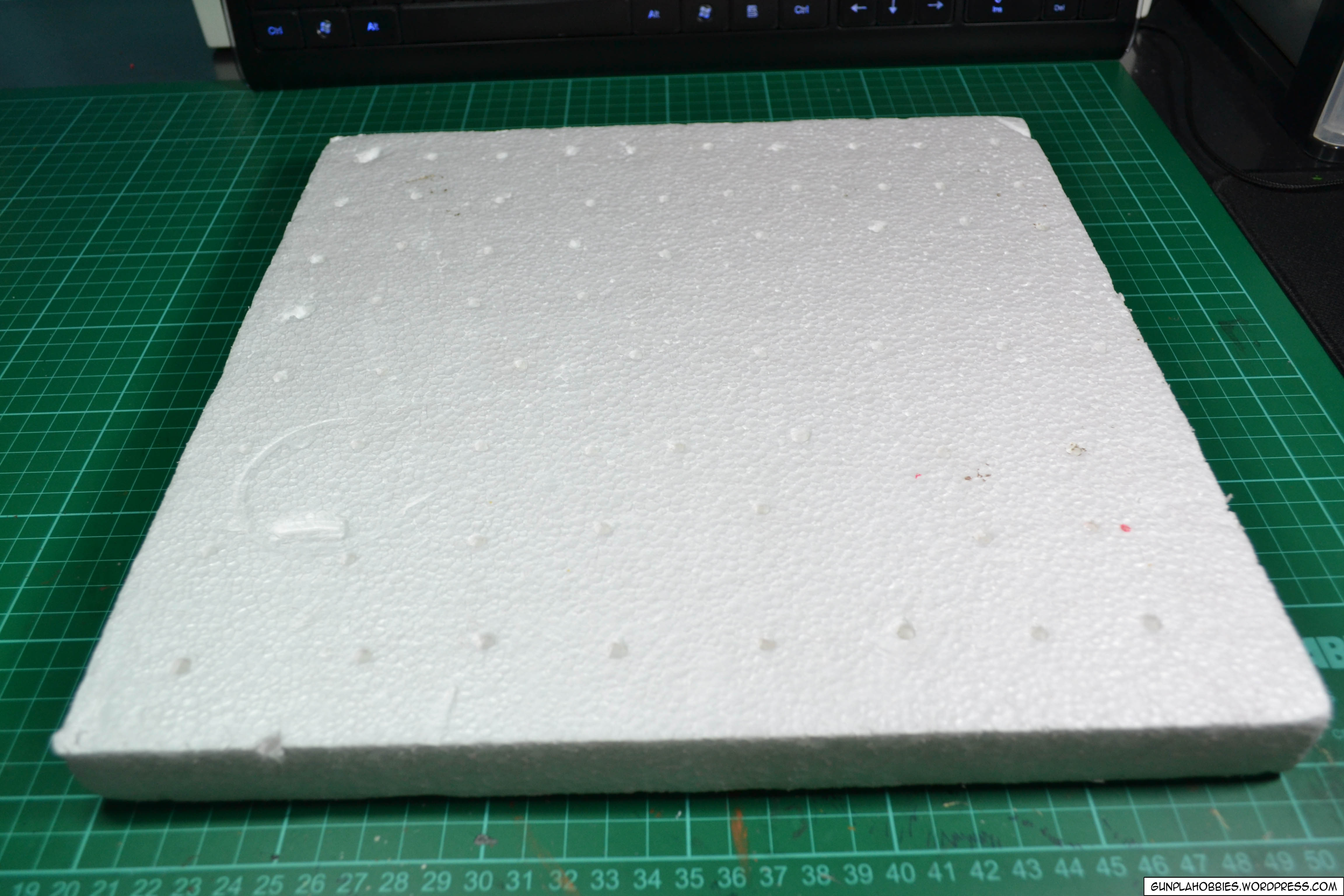

After painting the pieces, you can stick them into a expanded polystyrene block for drying. (Styrofoam is a brand name, it’s suppose to be called expanded polystyrene)

DSC_0063

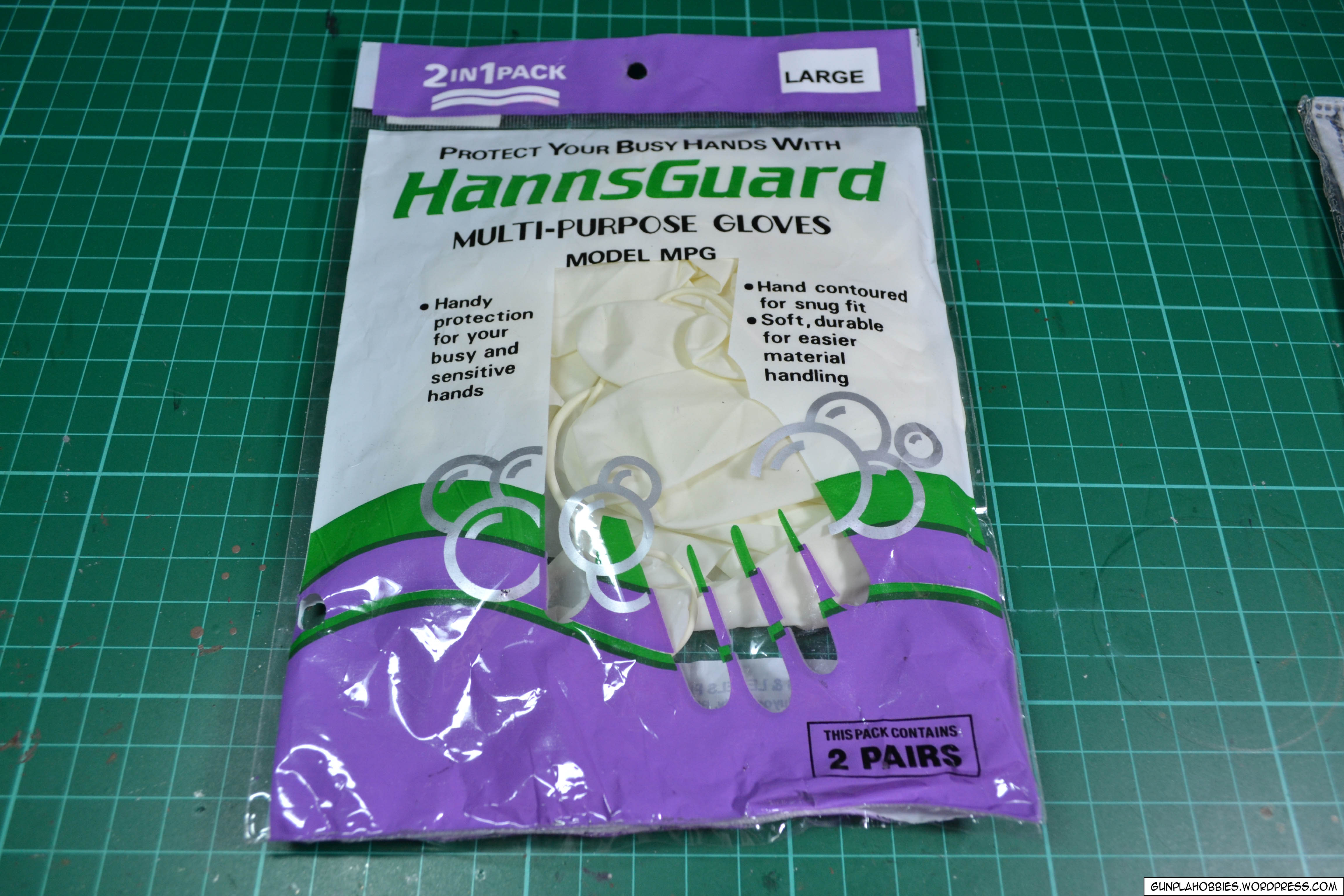

Some of the paints are harmful to human skin especially the industrial spray cans as well as the Tamiya spray cans, so we have to protect ourselves and uphold the safety code of Gunpla modelers (if there’s such a thing) using these latex gloves or whatever gloves you can find(not baseball gloves though):

DSC_0068

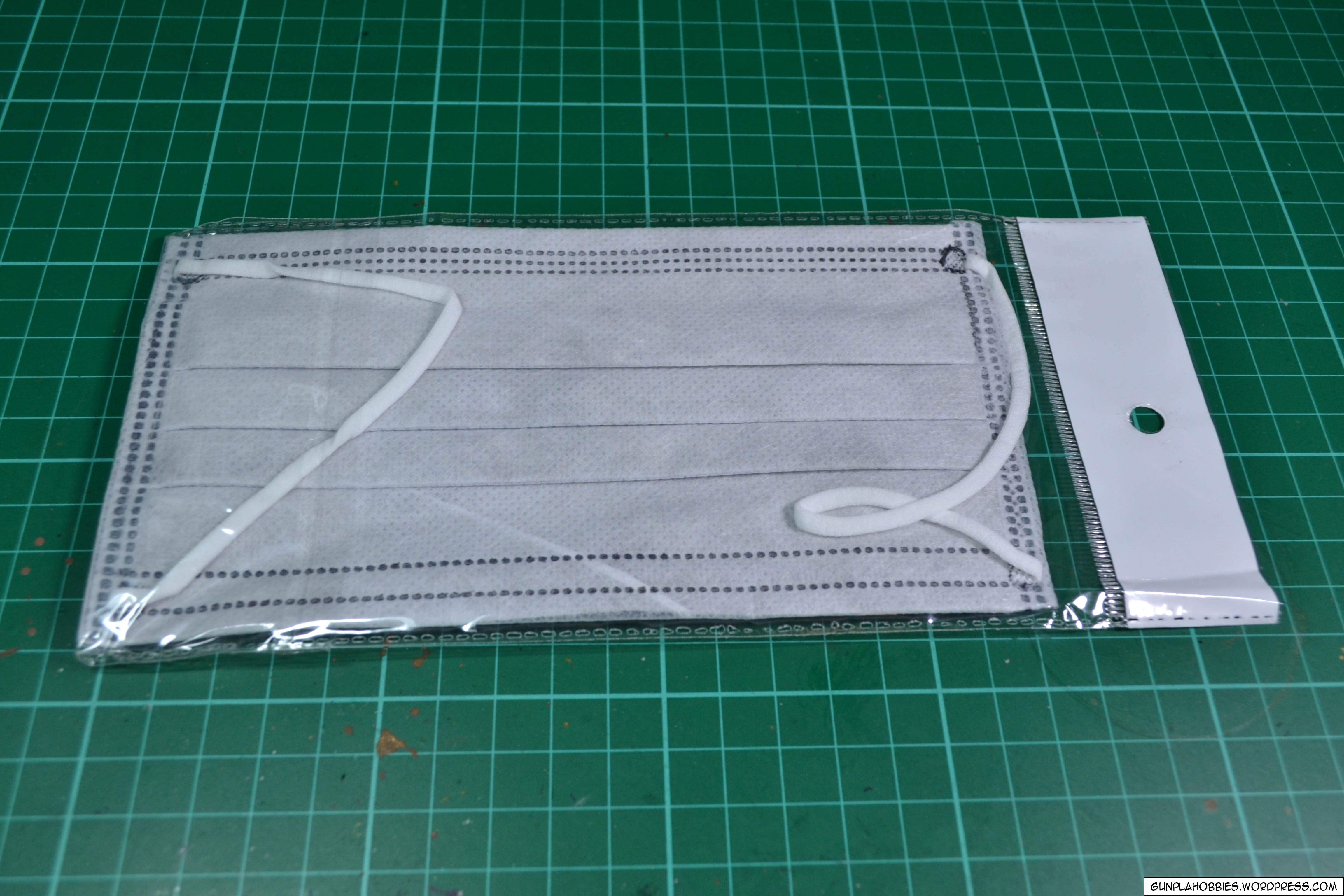

Paint fumes is also dangerous to human lungs! So be sure to wear a carbon filter mask to decrease intake of harmful paint fumes:

DSC_0069

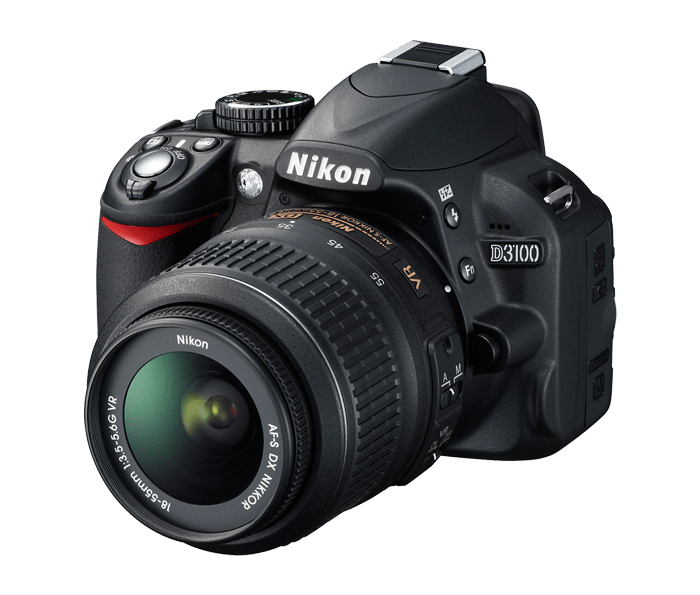

After you have cut, cleaned, assembled, primed, painted, applied decals and topcoated your kit, it’s now time to share your work to other people! I use my Nikon d3100 and standard lens in taking my photos:

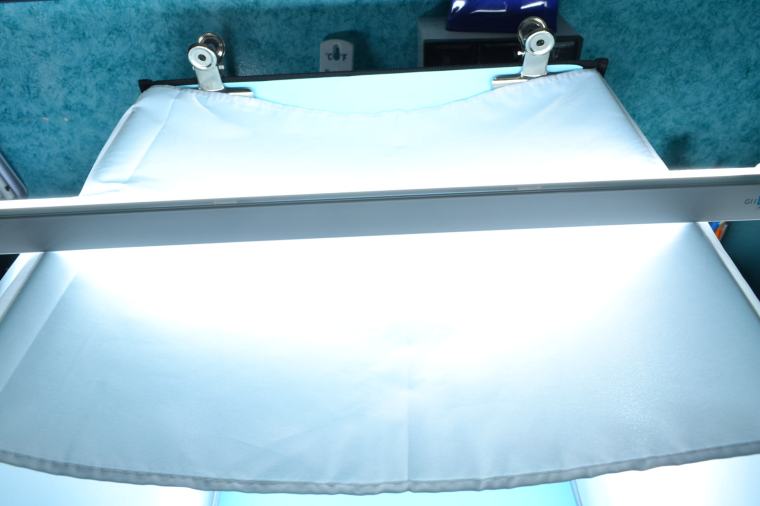

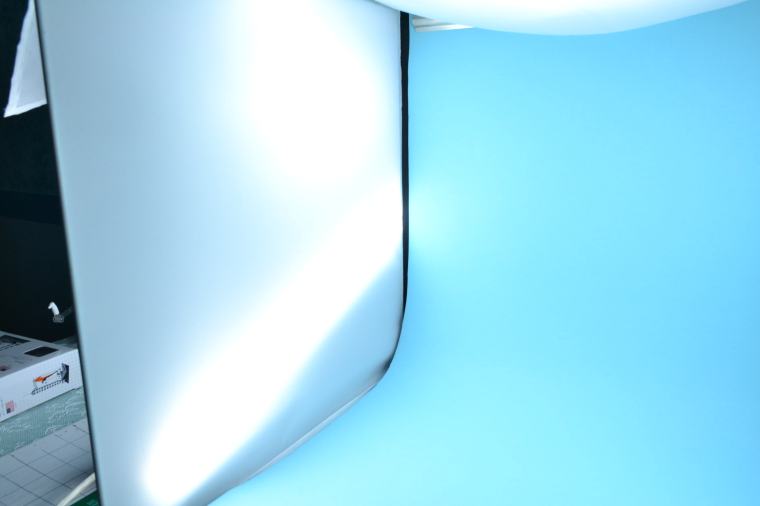

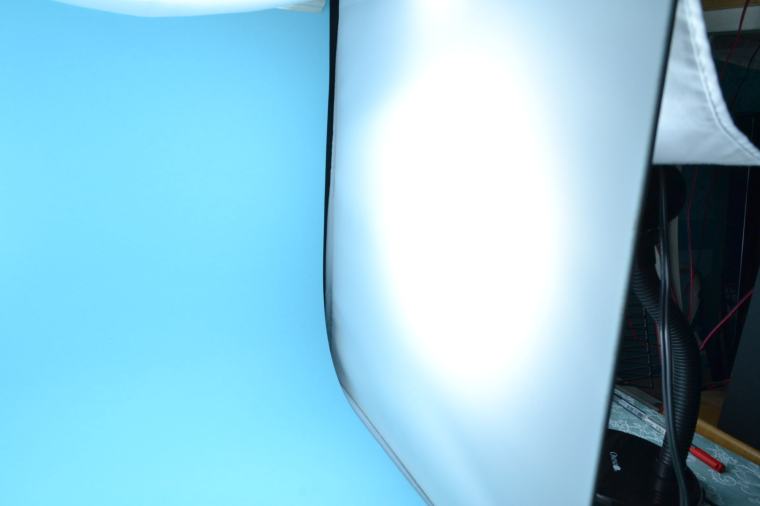

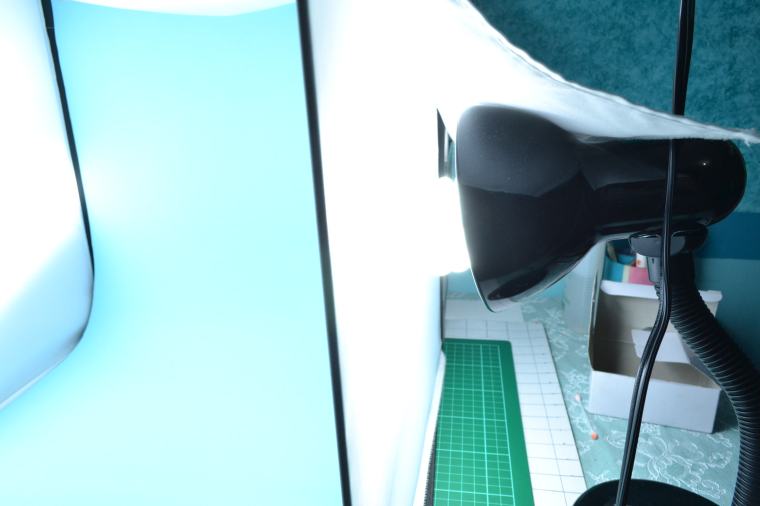

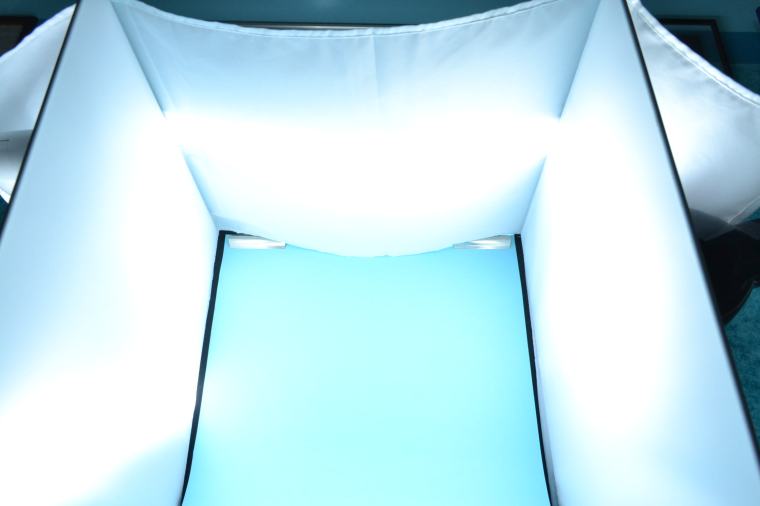

Here is my current light-box setup:

The cloths are used to diffuse the light source so that no hard shadows appear.

Light sources are from the left, right and top. On the top rests one fluorescent batten as the light source from the top.

The right side light source is my black lamp with a flourescent bulb of 20 watts I think? I’m not sure but it is pretty damn bright! 🙂

There are two light sources for the left side, one florescent lamp and one florescent batten.

So that’s how I setup my photobooth! It works great! I use cartolina for my background, basically its just a large piece of paper that is harder than the usual copy paper and comes in different colors!

That’s it for the tools that use in Gunpla modeling, hope this helps to people who are interested and wants to start out doing Gunpla modeling!
