Tamiya Spray-Work Basic Air Compressor w/ Airbrush Review

Tamiya Spray-Work

I decided to up my game in my hobby and so I recently bought a Tamiya Spray-Work basic air compressor w/ airbrush kit. I could not find any comprehensive or detailed enough review about this product on the internet, so it’s nice if someone wanting to buy this set could find a review for this product. That’s why I’m making one!:

Part I. Packaging:

The packaging is a nice colored carton box and has details about the product on the back and sides:

DSC_0025

Stuff on the back is in Japanese:

DSC_0026

DSC_0027

This is the topside:

DSC_0028

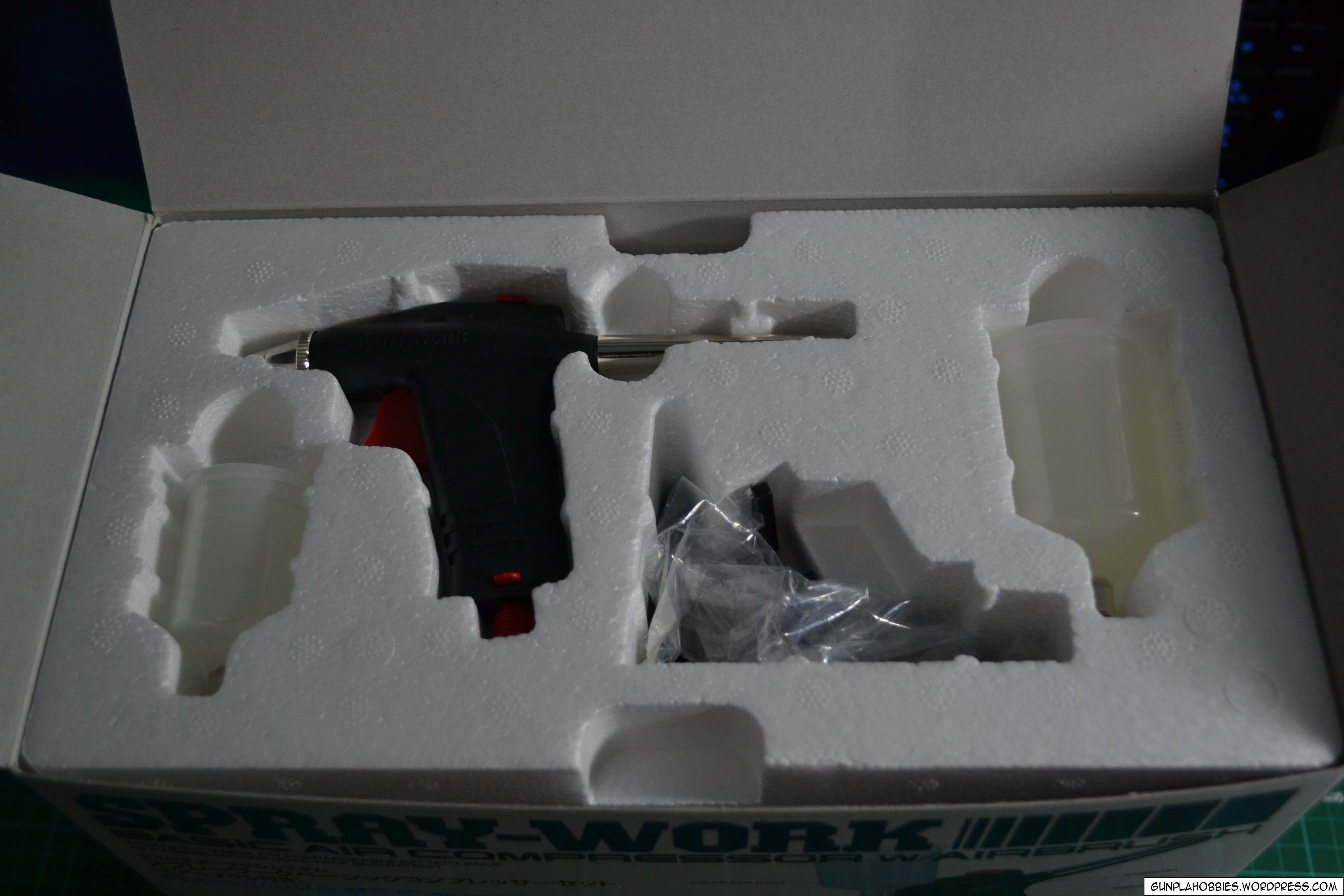

Opening the topside you’ll find the airbrush, 2 color cups and a stand.

DSC_0030

DSC_0031

Under the airbrush is the air compressor, taking out the air compressor:

DSC_0032

Here is the actual air compressor, it’s dusty since I have already used it recently. It’s small, compact and lightweight! I did not expect the air-compressor to be this lightweight, the AC inverter is heavier than the whole air compressor unit:

DSC_0033

Attaching the hose/tube where the air will go out:

DSC_0034

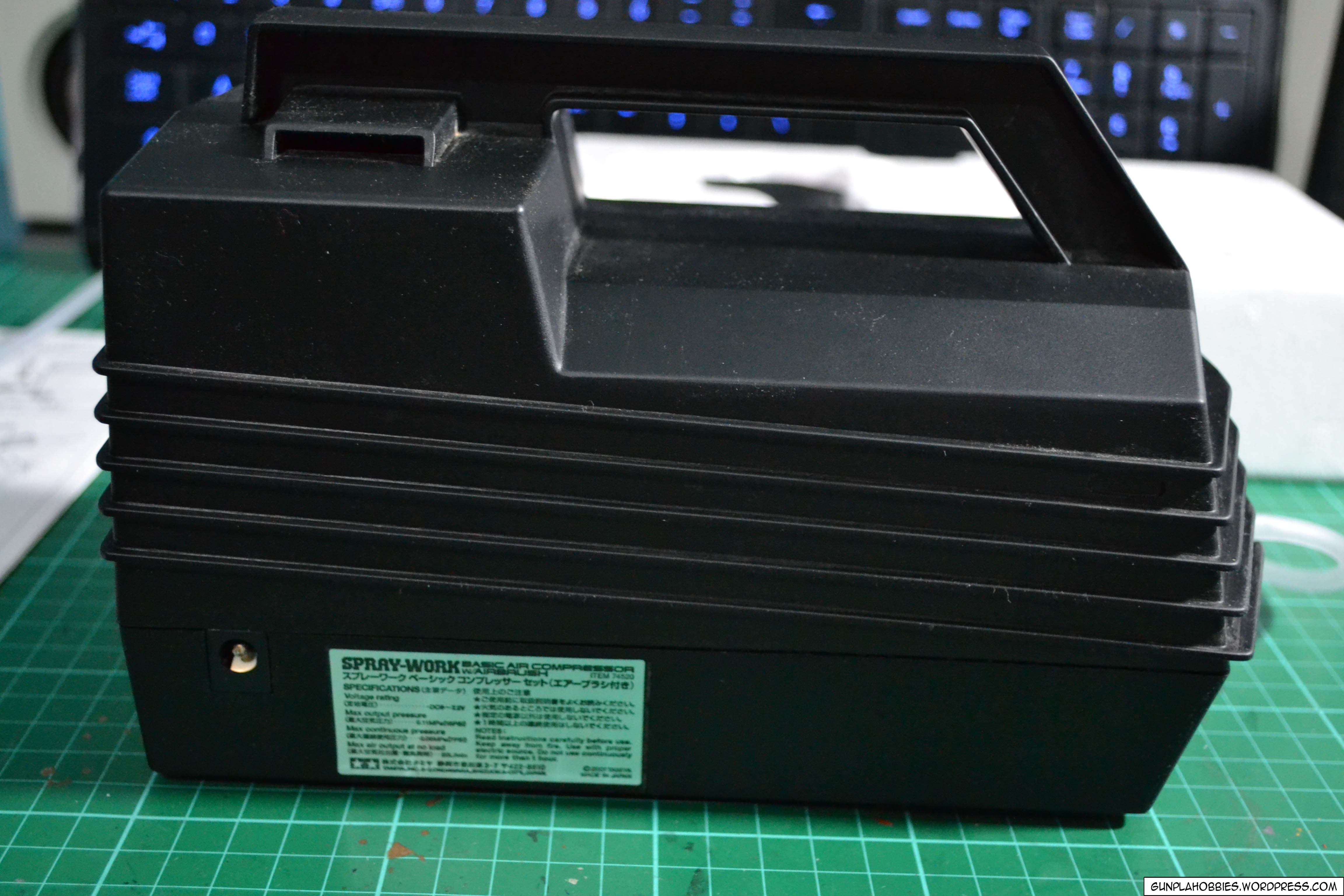

The other side of the air compressor has a silver sticker with technical details about the unit and also an input jack for DC power:

DSC_0035

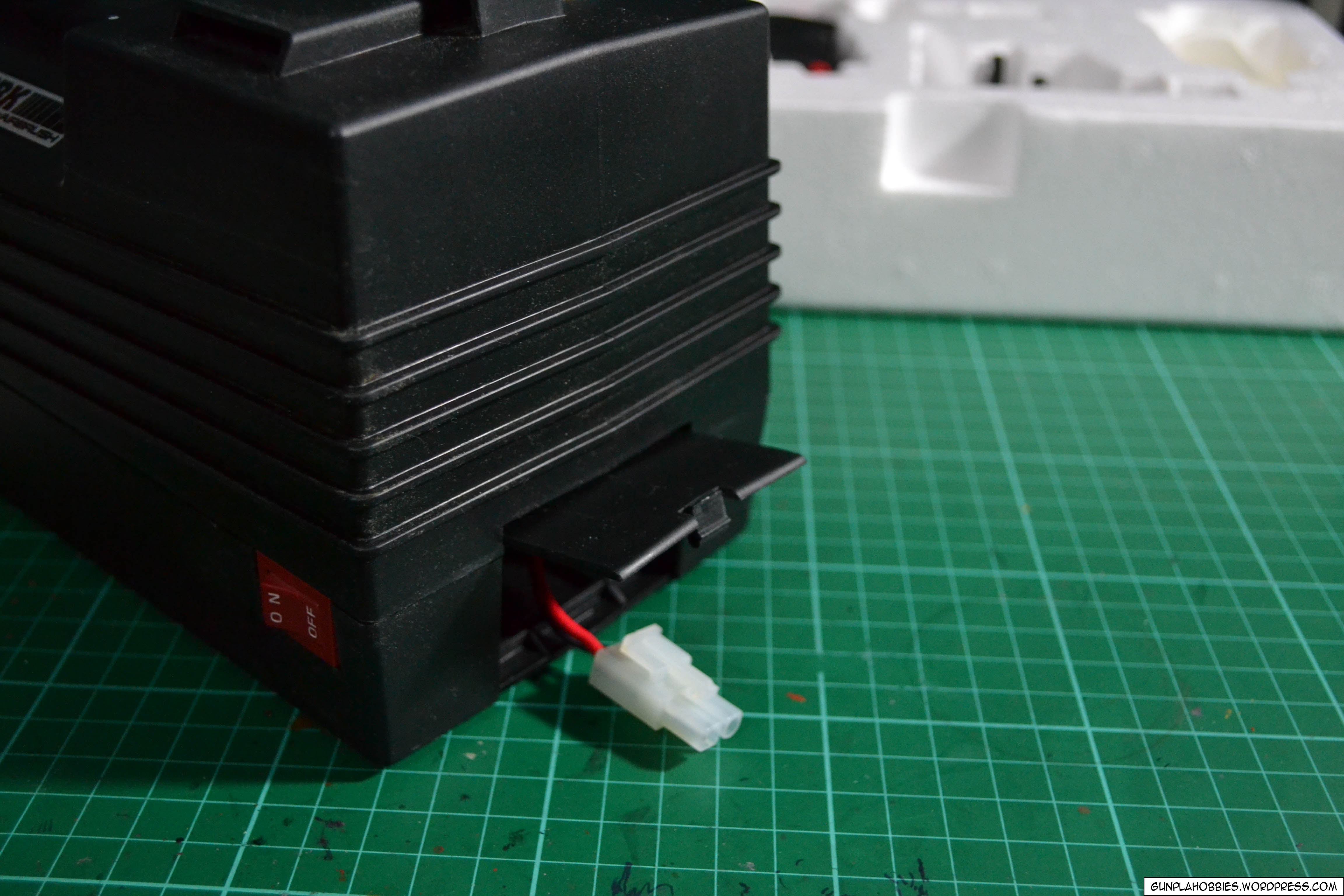

Originally, this kit is powered by a 7.2V battery that can be housed inside the unit:

DSC_0036

DSC_0037

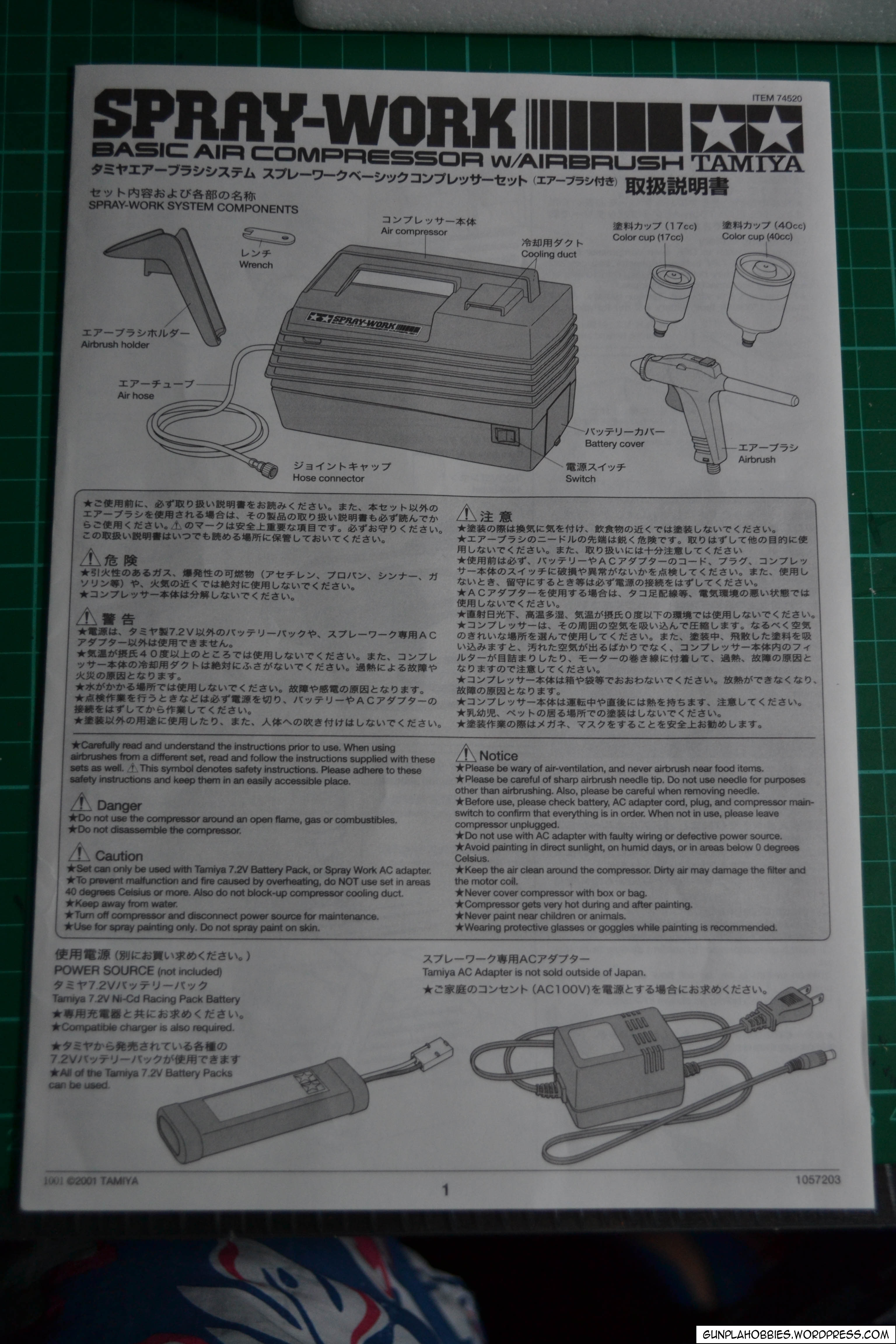

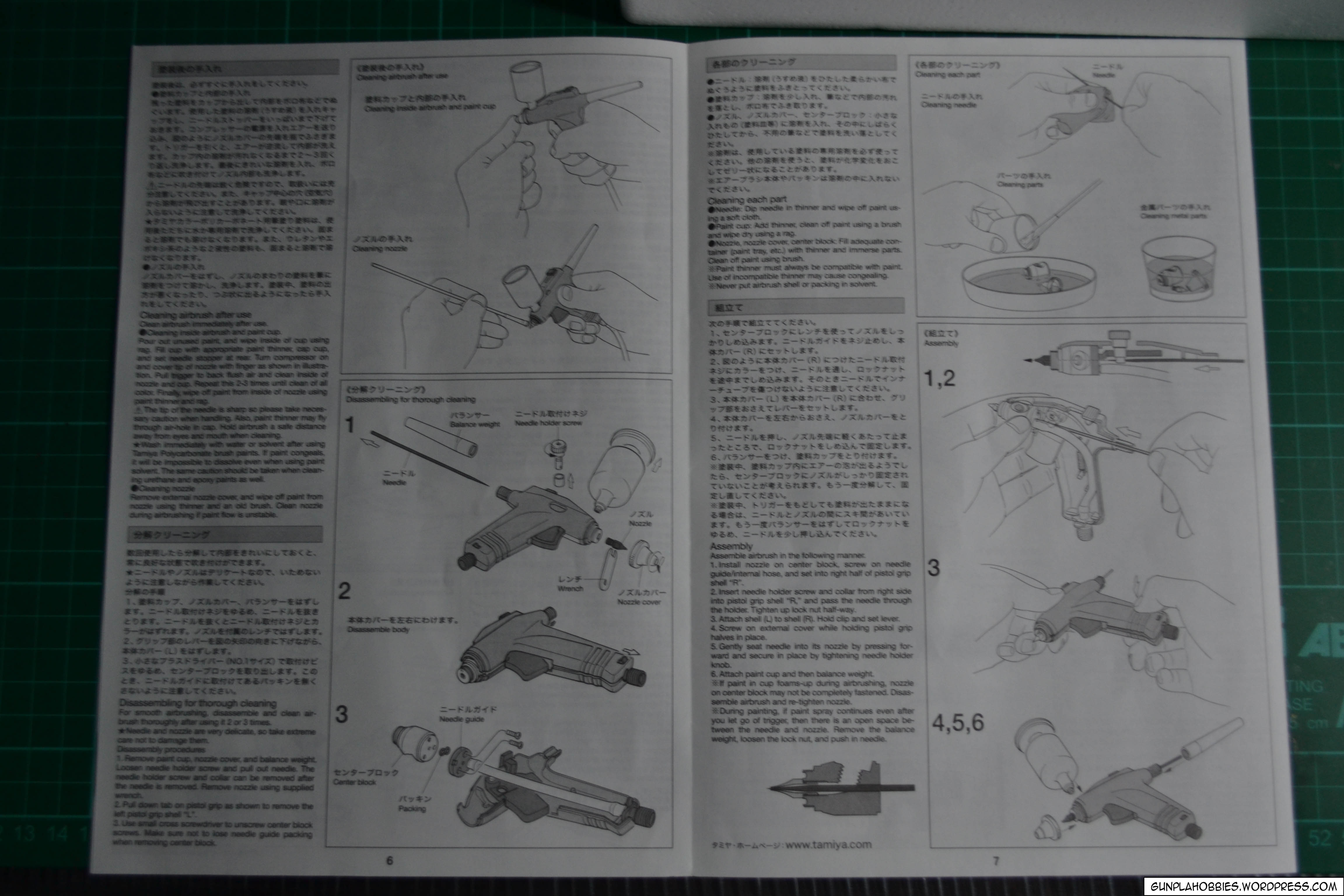

The user’s manual is pretty detailed, complete and clear! This is all you need in understanding how to use the set as well as how to maintain and clean the airbrush:

DSC_0038

DSC_0039

Part 2: Assembling the parts:

Taking out the airbrush from the polystyrene, comes with two color cups with the other one having larger capacity, a small wrench to unscrew the nozzle and a stand that can be attached to the air compressor unit:

DSC_0040

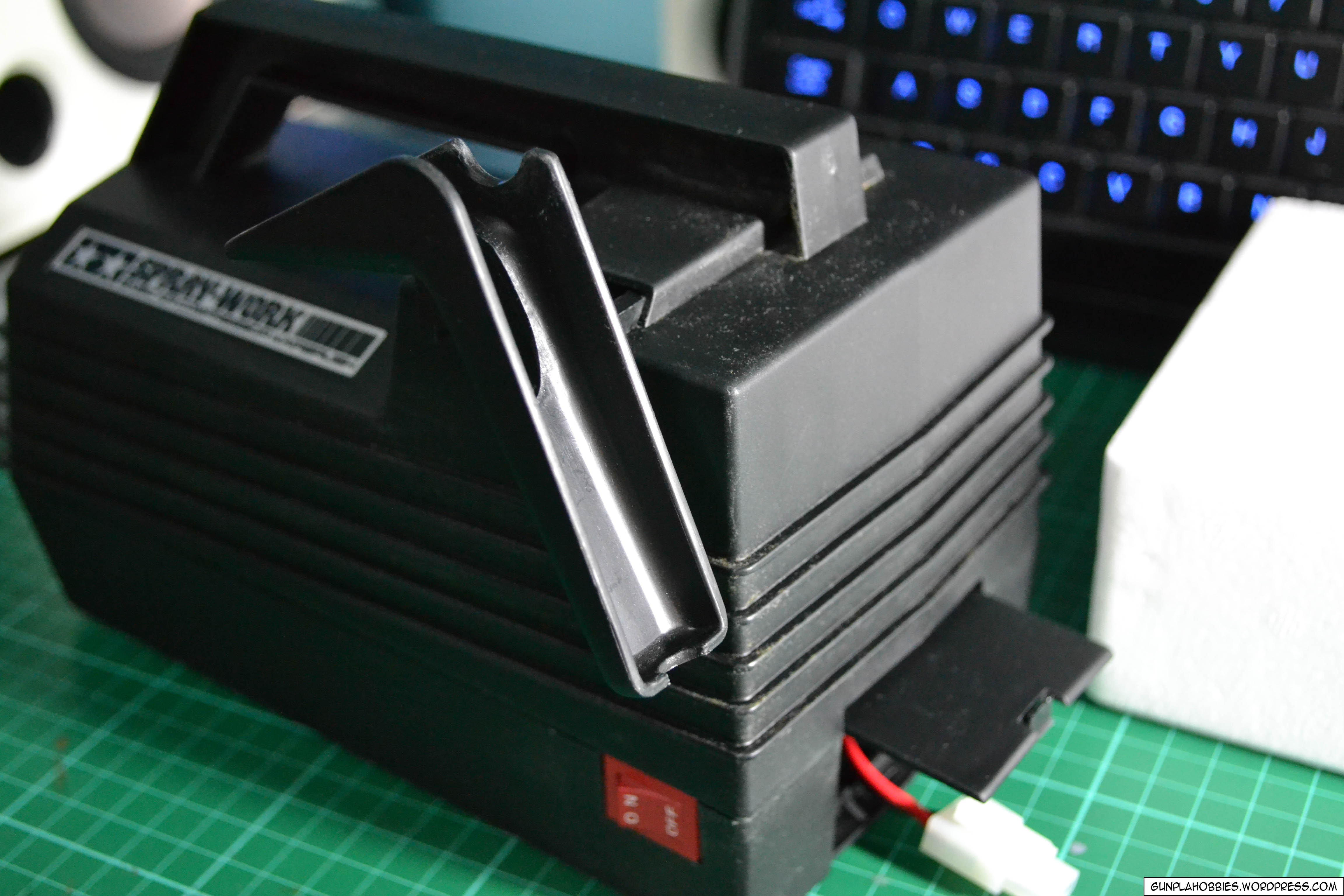

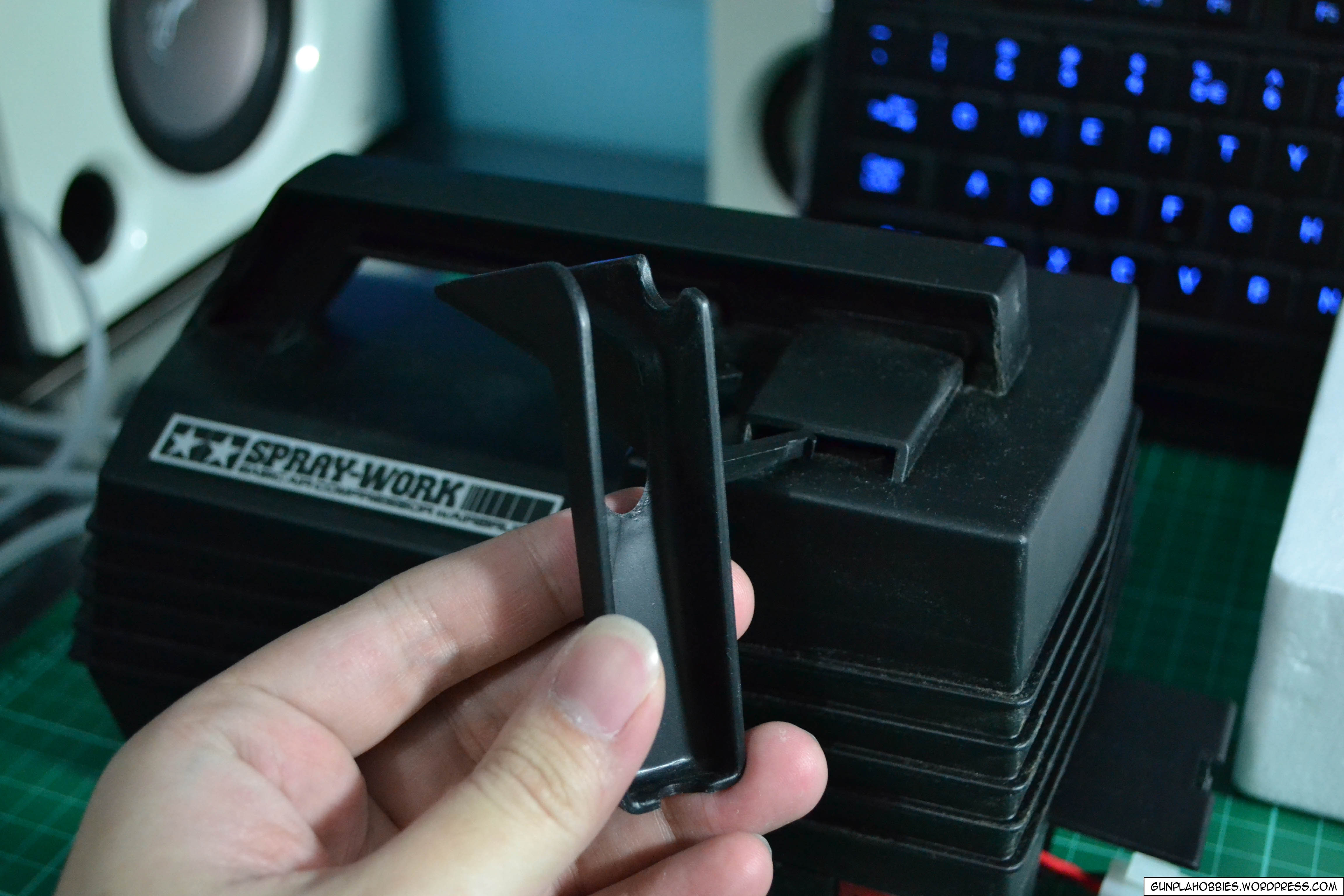

Attaching the stand:

DSC_0041

DSC_0042

DSC_0043

Attaching the end of the hose to the airbrush:

DSC_0044

Instead of a 7.2V battery, we’ll be using an 220V AC to 7.2V DC converter so that we’ll have continuous power supply, this thing is actually heavier than the air compressor unit:

DSC_0045

Part 3: Preparations:

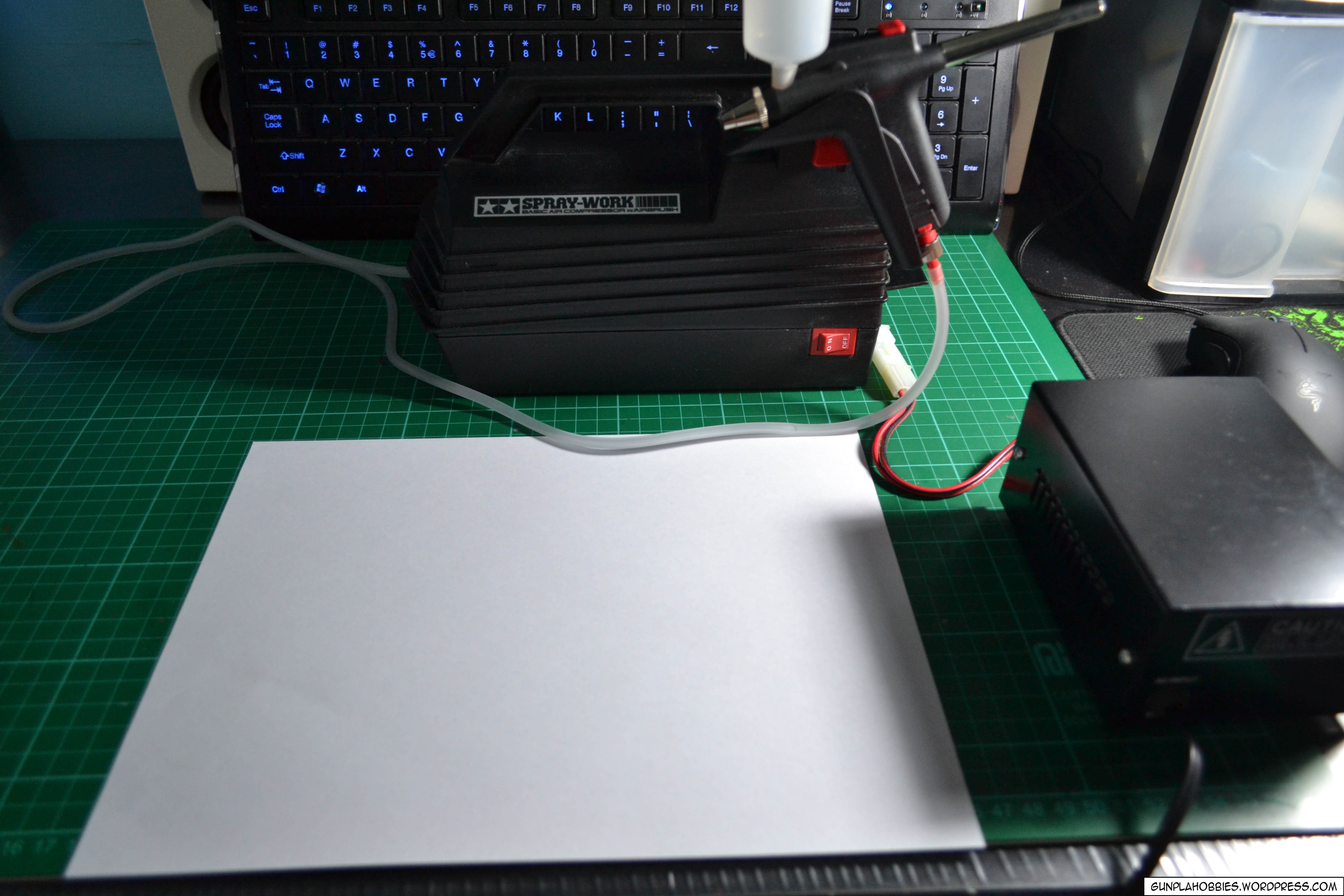

Now that we’re all set, I’ll be showing you how to prepare the airbrush for usage:

DSC_0048

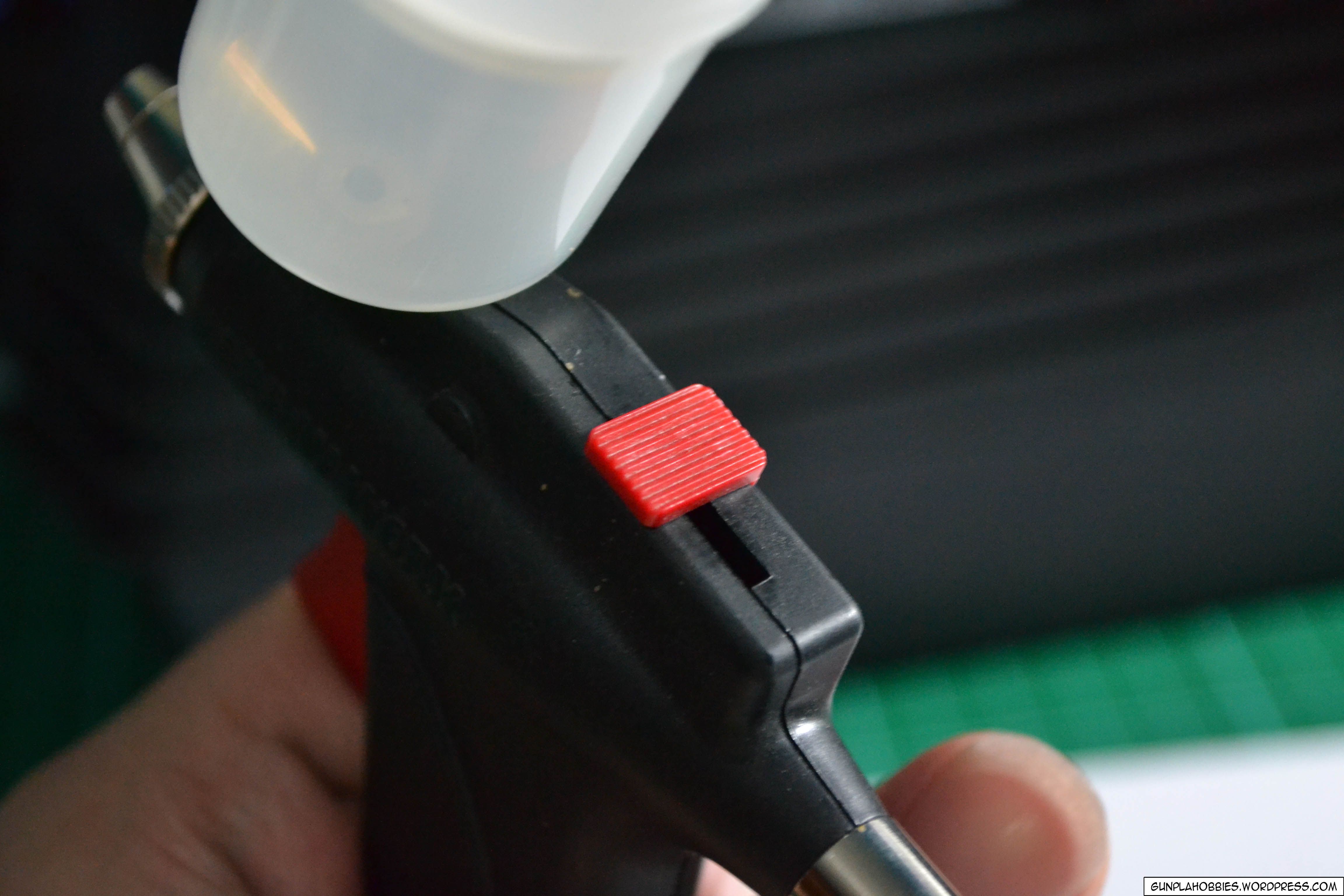

Here is the adjustable trigger sensitivity(the red sliding switch). What do I mean by trigger sensitivity? It just means how much you can pull back the trigger. (the more the trigger is pulled back, the more paint will flow from the color cup). When the sensitivity is set at the topmost, then you won’t be able to pull back much of the trigger resulting to minimal paint flow and fine lines, when the sensitivity is in the middle, you can pull back the trigger halfway for moderate paint flow. Lastly when the sensitivity is set at the bottom most, maximum paint flow will be achieved.

DSC_0049

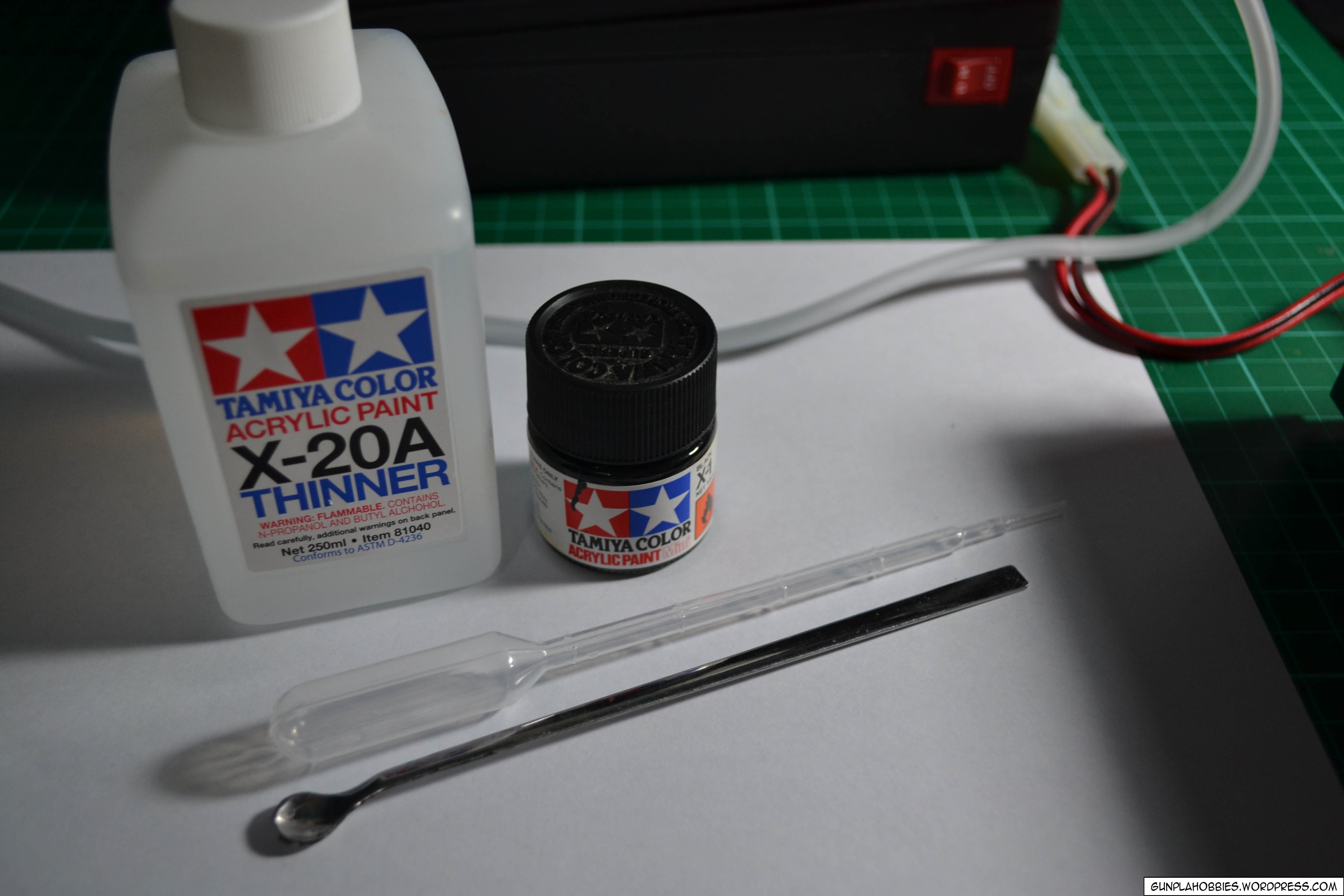

Before we start, of course we need some materials. For this demo I’ll be using a black acrylic paint, acrylic thinner, a dropper to drop some thinner and a paint stirrer:

DSC_0051

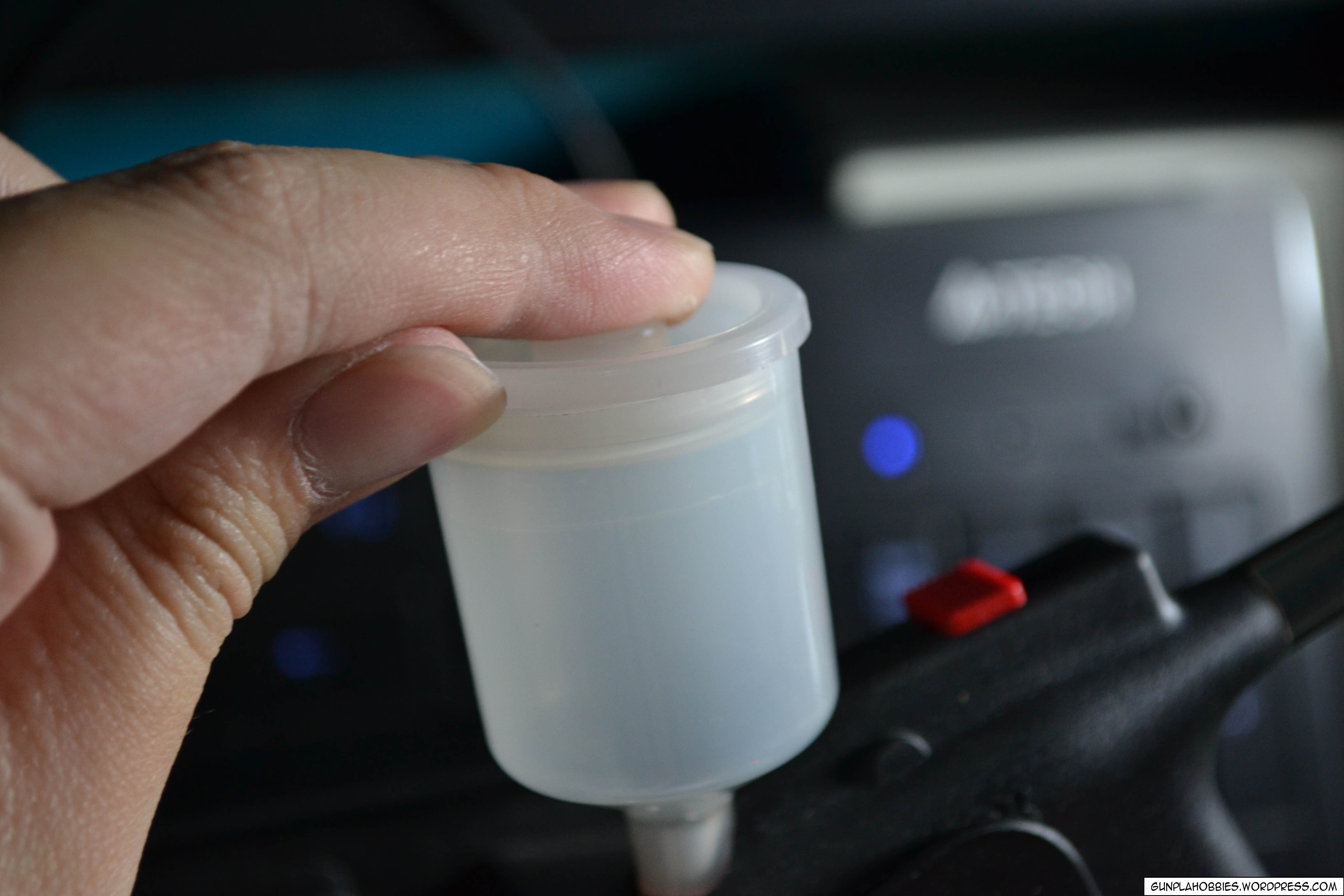

Open the color cup so that we can put some paint in it:

DSC_0052

Stir first the paint to be used so that paint chunks is lessened or reduced to none, you can apply a bit of thinner to reduce the chunky paint (if your paint is chunky, they get chunky through time as some of the thinning agent evaporates).

DSC_0053

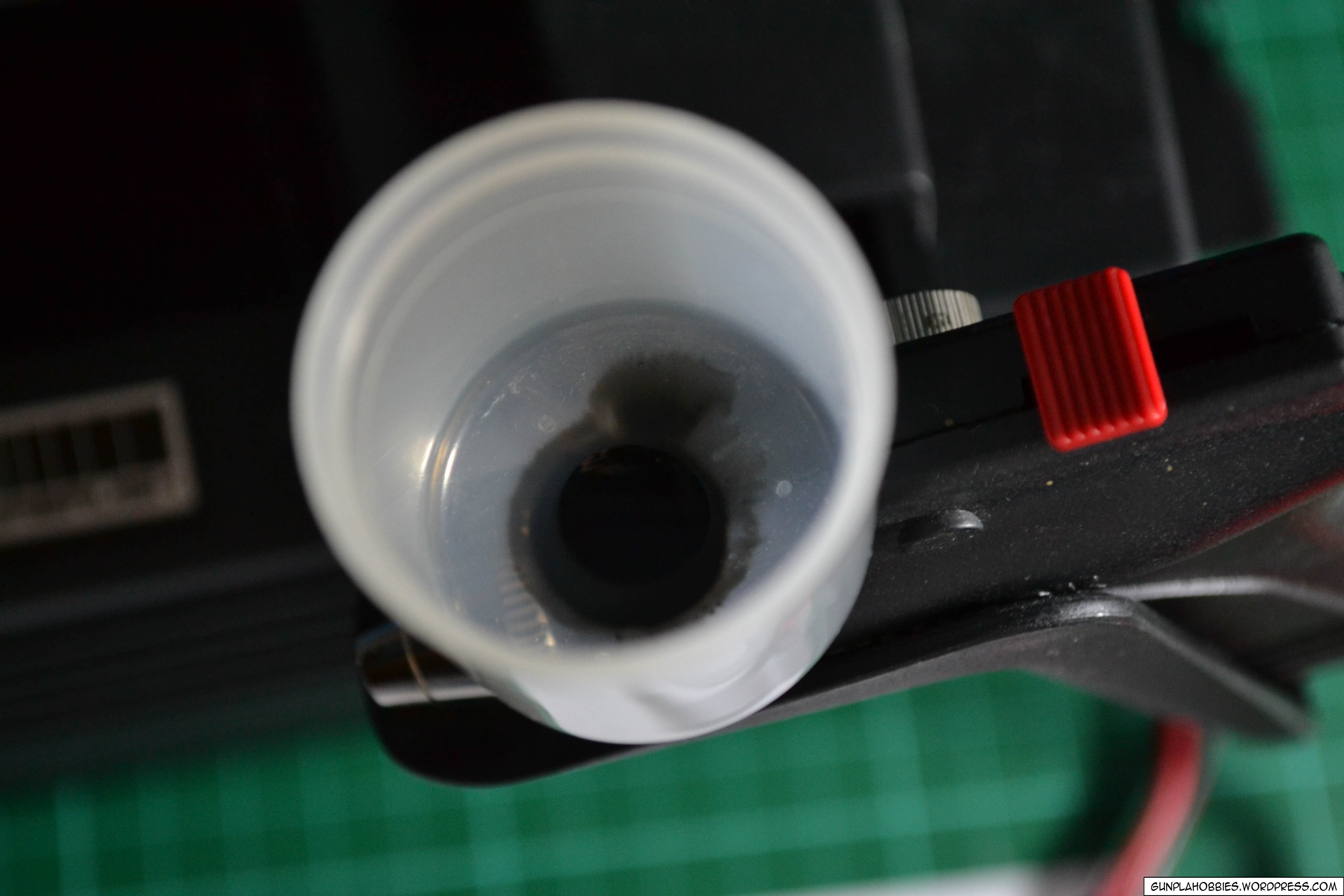

Putting a bit of the acrylic paint onto the color cup:

DSC_0054

Get some thinner and mix it with the paint on the color cup, it recommended to have a ratio of 1:1 for acrylic paints (well, according to the manual, you can adjust the ratio as you see fit. Thicker paint = blotchy rough output, paint runs out slow. Thinner paint = fine smooth output, paint runs out fast).

DSC_0055

DSC_0056

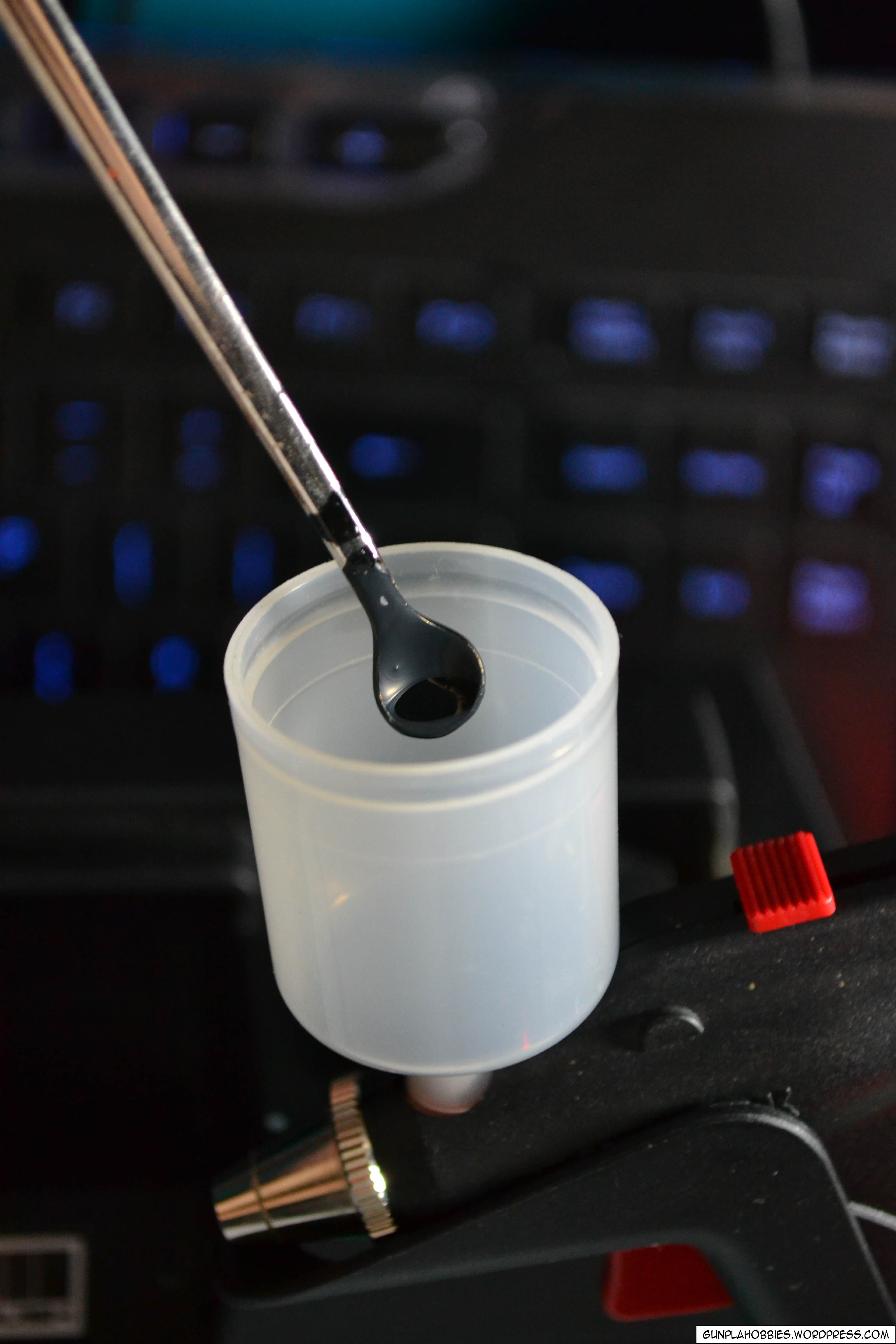

Use the paint stirrer to mix the paint and thinner inside the color cup:

DSC_0057

Part 4: Actual usage:

Let’s get on the actual usage! First let’s try the lowest sensitivity:

DSC_0058

I will be spraying on a white surface initially around an inch away from the paper, then I will paint a series of vertical pattern going to the right increasing the perpendicular distance with respect to the paper surface:

DSC_0059

Here is the output for the lowest sensitivity. As you can see, only a little bit of paint flow is observed:

DSC_0060

Now let’s try using the midway position:

DSC_0061

The lower part of the paper is the result of the moderate sensitivity. As you can observe, more paint flow is allowed using the moderate sensitivity. Paint will drip if you are too close to the subject being painted.

DSC_0062

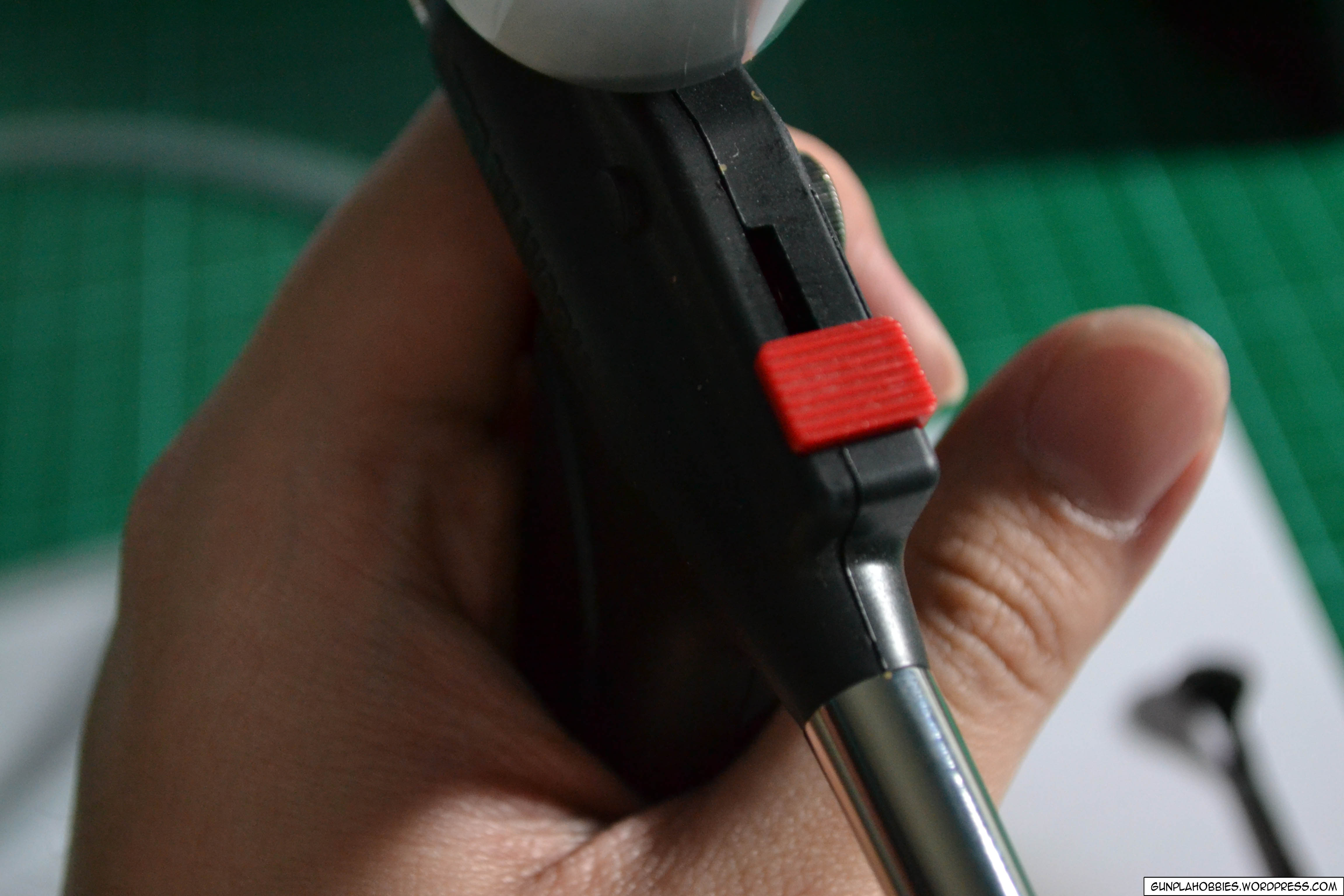

Lastly, using maximum sensitivity:

DSC_0063

And this is the result, maximum paint flow can be attained using this sensitivity. I sprayed some vertical patterns using the minimal sensitivity on the upper left part of the paper for comparison. I am very satisfied with the range of sensitivities provided by the airbrush.

DSC_0065

Last Part: Disassembling the airbrush for cleaning:

Disassembling the brush is easy, first remove the outer nozzle and balance weight:

DSC_0067

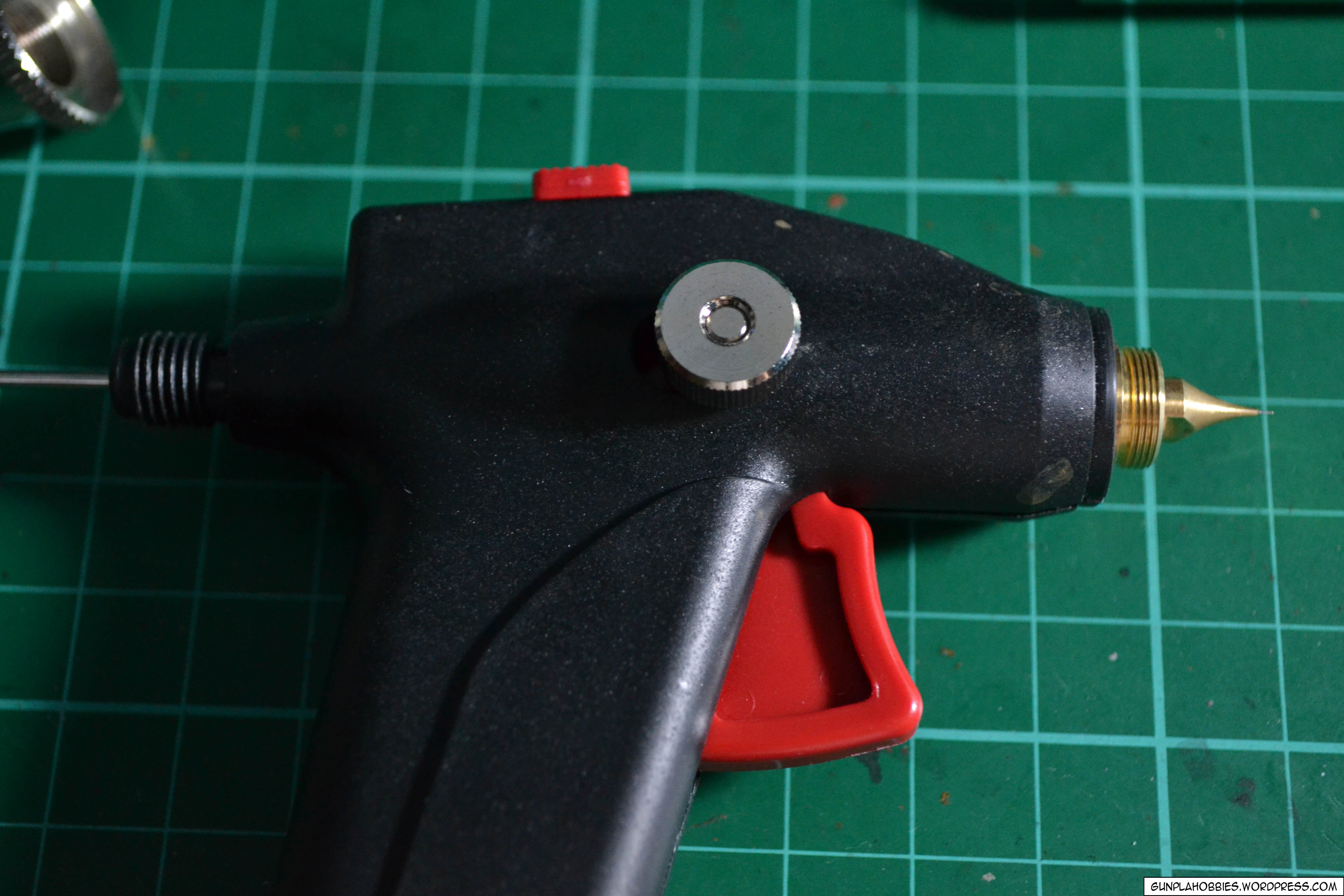

Remove the screw that holds the needle:

DSC_0068

DSC_0069

DSC_0070

Removing the needle. The needle is the most important part of the air brush, careful not to damage or bend it as it is the one responsible for adjusting the paint flow:

DSC_0071

Using the small wrench, we can un-wrench the inner nozzle:

DSC_0072

This is also vital for the paint flow partnered with the needle:

DSC_0073

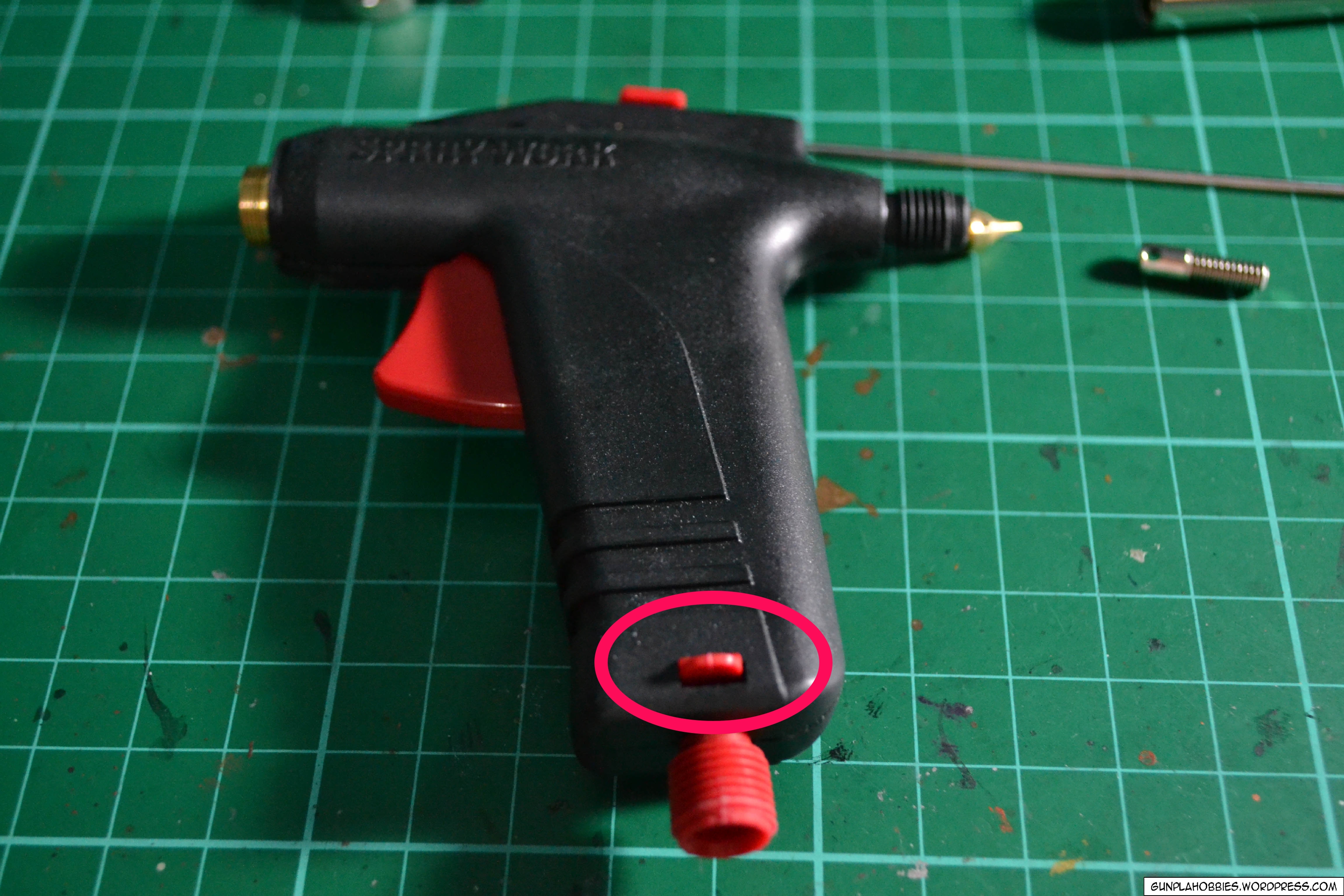

To remove half the the plastic case, just pull down the red thing below:

DSC_0074

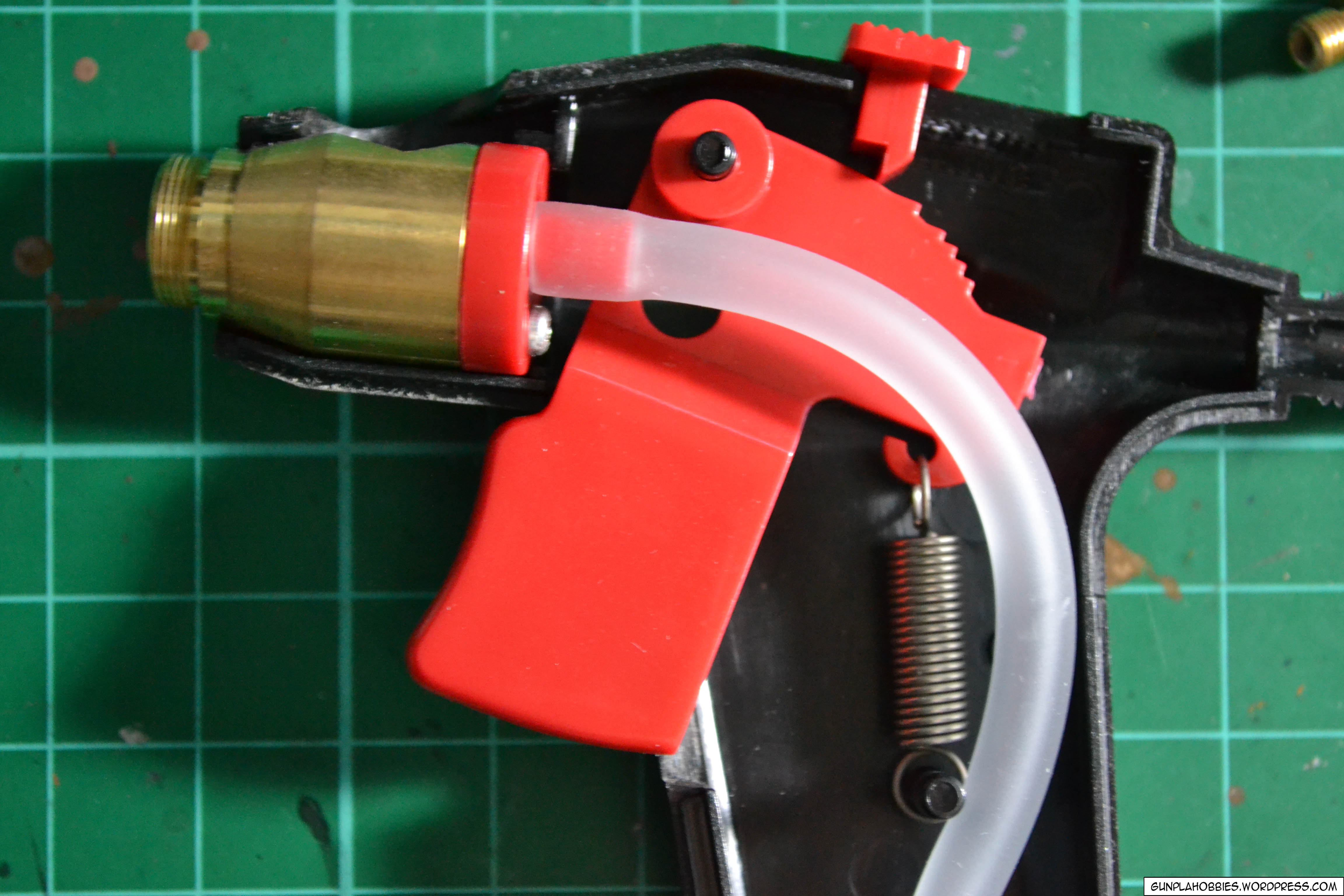

And viola! It’s recommended to clean all the metal parts of the airbrush after 2 or more uses, the paint tank inside can be further removed by unscrewing the screws but I won’t show it anymore:

DSC_0075

For cleaning my airbrush, I use denatured alcohol provided I only use acrylic paints. I like denatured alcohol than using thinner in cleaning my airbrush because denatured alcohol has a odorless variant and is cheap! Be sure to wash your hands afterwards though, because denatured alcohol is poisonous in large quantities.

DSC_0076

Well, that’s it for this review! For the summary:

What I like about this kit:

1. Air compressor is lightweight, has minimal noise and is portable.

2. Comes with an basic airbrush.

3. Easy to use.

4. Easy to clean.

5. Airbrush has enough sensitivity options for my needs.

6. Everything you need to start air brushing is already in this kit (apart from the paints and thinner)

What I don’t like about this kit:

1. For now, none that I can think of. Maybe it’s a bit pricey, but well worth the investment rather than buying spray cans all the time.

Tips for people who plans to buy and use this kit:

1. You can find cheaper deals at Sulit.com.ph, though they usually don’t have a power supply included.

2. If you don’t want the hassle to find a cheaper deal, just buy the kit from Lil’s Hobby Center priced at Php 6295 (at the time of writing), this already includes the power supply.

3. Have lots of cleaning materials around and use a well ventilated area during spray painting. Spray painting produces a lot of dust! It nice to have an air humidifier around to reduce the dust produced and contain it.

4. It is recommended to let the air compressor rest after 30 mins of usage to extend the life of the motor.

Till next time! I will be posting my recent work using this airbrush!

Sample photo of an airbrushed kit:

sample
